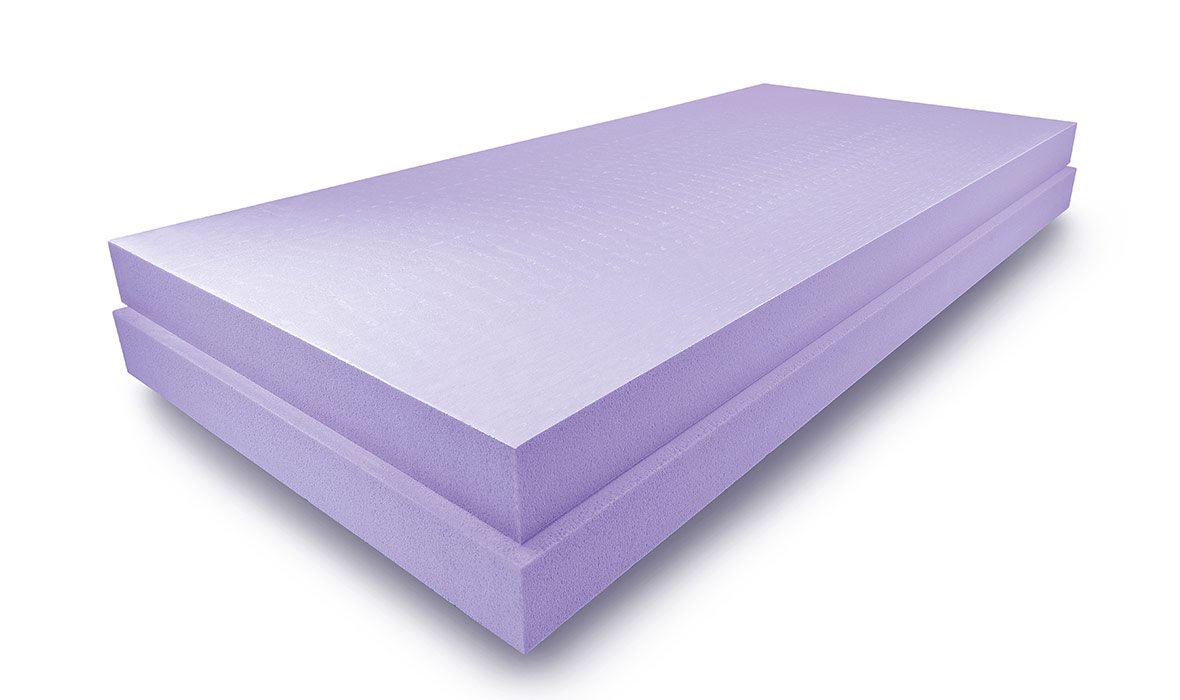

JACKODUR® Plus 300 Standard SF

The XPS insulation board with maximum insulation value and minimum installation height.

The elegant solution for maximum insulation performance.

Made of extruded polystyrene foam (XPS), JACKODUR® Plus is ideally suited for all construction applications that demand excellent insulation performance with low installation height.

Product characteristics JACKODUR® Plus 300 Standard:

Excellent compressive strength: 300 kPa
Outstanding lambda value with low installation height: λ_D= 0.027 W/(m·K)
Shiplap and smooth, extrusion-compressed surface
Insulation thicknesses from 50 mm to 400 mm
Good dimensional stability, moisture resistance, and rot resistance

Benefits JACKODUR® Plus 300 Standard:

25 % greater insulation at comparable insulation thicknesses
Secure single-layer installation up to 400 mm
Time and cost-saving installation

Ideal application:

Inverted roof (gravel-covered, green, patio roof)
Top floor ceiling insulation
Basement retaining wall insulation
Soil-contact insulation under the slab
Insulation under screed
Core insulation

Image 1 / 4
Image 2 / 4
Image 3 / 4
Image 4 / 4

Downloads to the product

Approvals & Test Certificates

Breeam Fact Sheet JACKODUR Plus (pdf; 283 KB)

DGNB BNB LEED BREEAM JACKODUR Plus (pdf; 80 KB)

EPD JACKODUR Plus (pdf; 2 MB)

Leed Fact Sheet JACKODUR Plus (pdf; 271 KB)

Safety data sheets

JACKODUR Plus (pdf; 211 KB)

Data sheets

JACKODUR KF/Plus 300 inverted roof (pdf; 523 KB)

JACKODUR Perimeter insulation (pdf; 259 KB)

JACKODUR Plus 300 Standard (pdf; 448 KB)

Brochures

JACKODUR Catalogue (pdf; 5 MB)

Technical data

JACKODUR Technical Specifications (pdf; 156 KB)

Ideal applications for JACKODUR® Plus 300 Standard SF
