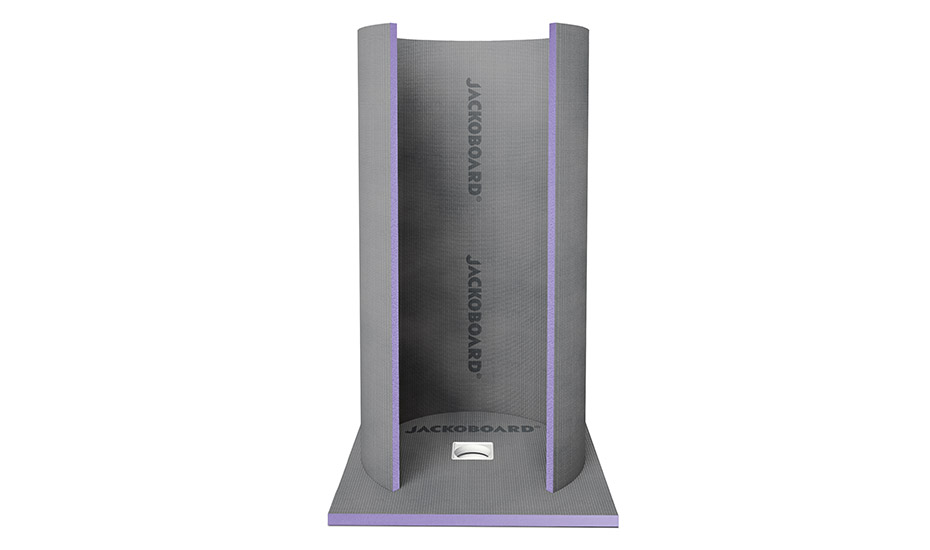

JACKOBOARD® Aqua Circle

Deluxe, tileable circular shower for barrier-free showering.

The complete solution for high quality, level access circular showers.

The JACKOBOARD® Aqua Circle shower element enables fast and easy construction of a visually attractive, level access, high quality circular shower. Comprising of a 5-part shower partition wall with tongue-and-groove joints, this complete solution assures impressive results with the tried and tested benefits of the JACKOBOARD® Aqua series: The elements have an extruded polystyrene (XPS) foam core and a special water-repellent coating on both sides that permits direct tiling.

Product characteristics – JACKOBOARD® Aqua Circle:

  • Made of extruded polystyrene foam
  • Water-repellent
  • With special coating on both sides
  • Tiles can be directly applied
  • Integral CNC-machines drainage fall
  • Custom sizes available on request
  • Excellent insulation properties λD = 0.035 W/(m·K)
  • Drainage flow rate 0.9 l/s
  • Wheelchair-accessible
  • Compressive strength > 300 kPa
  • Very low installation height
  • Drain can be ordered separately


Shower element:

  • Shower partition wall comprising 5 elements with tongue-and-groove joints
  • Interior wall area approx. 5.82 m²
  • Exterior wall area approx. 6.39 m²


Floor element:

  • Level access shower element with incorporated fall
  • Inner diameter 1000 mm
  • Outer diameter 1100 mm
  • Internal floor area approx. 0.8 m²
  • Milled groove for partition wall elements


Benefits – JACKOBOARD® Aqua Circle:

  • Complete solution for a level access, wheelchair-accessible circular shower with all the benefits of the JACKOBOARD® product range.


Ideal application:

  • For the fast and easy construction of a visually attractive, level access circular shower.
