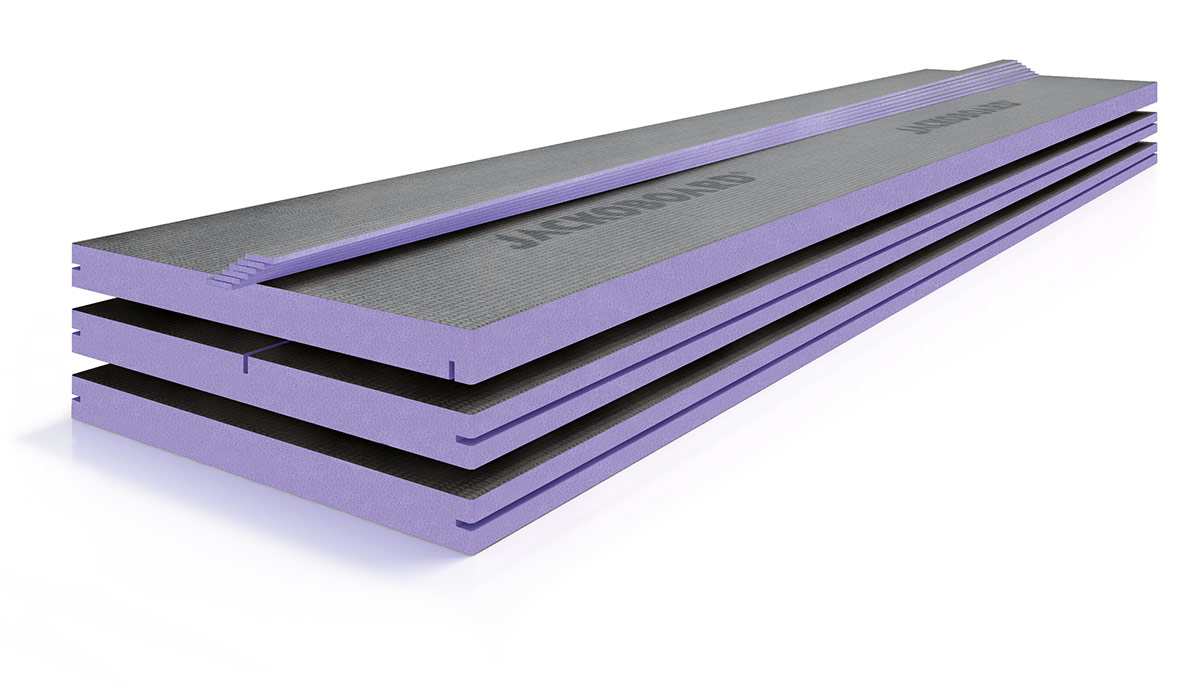

JACKOBOARD® Plano NF

The tongue-and-groove construction board.

Simple and stable construction board with integral joint.

JACKOBOARD® Plano NF construction boards are ideally suited for creating customized interiors. Their tongue-and-groove system forms simple and stable joints and clean corners between the construction boards. Their extruded polystyrene (XPS) foam core makes them water-repellent and their special coating on both sides also permits the time-saving direct application of tiles, plaster or filler compound. With their excellent thermal insulation values, they are ideally suited as thermal insulation boards, while their low weight, high compressive strength and easy handling provide impressive results.

Product characteristics – JACKOBOARD® Plano NF:

  • Made of extruded polystyrene foam
  • Water-repellent
  • With special coating on both sides
  • Low weight, approx. 3–6 kg/m2
  • Thicknesses: 50 mm and 80 mm
  • Board dimensions: 2600 x 600 mm
  • Excellent thermal insulation properties with λD = 0.035 W/(m·K)
  • High compressive strength > 300 kPa
  • For rooms subject to high moisture loads


Benefits JACKOBOARD® Plano NF:

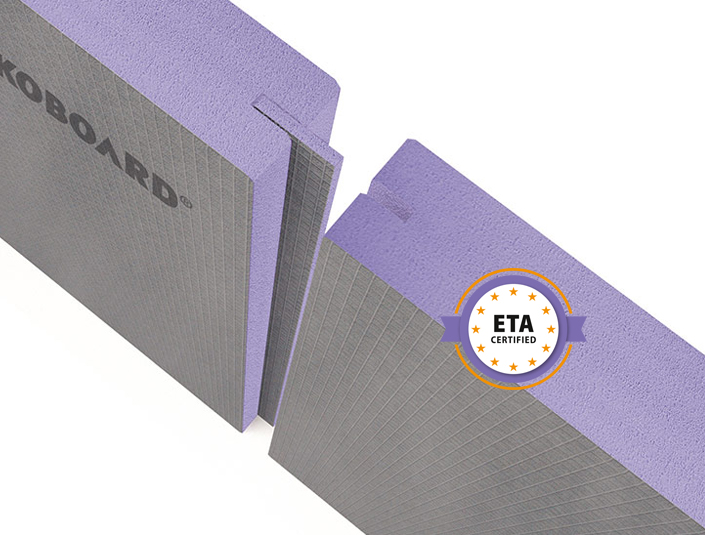

  • Each construction board element is supplied with two tongues with dimensions: 1300 x 37 x 6 mm

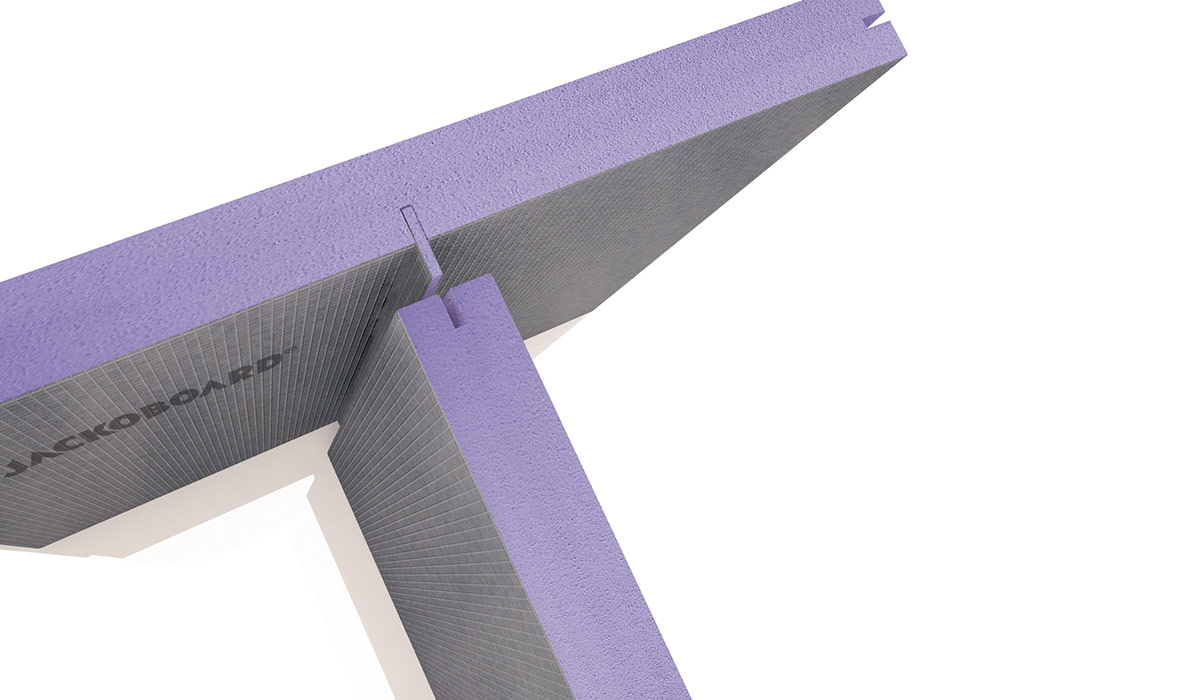

  • Easy and stable connection of construction board joints

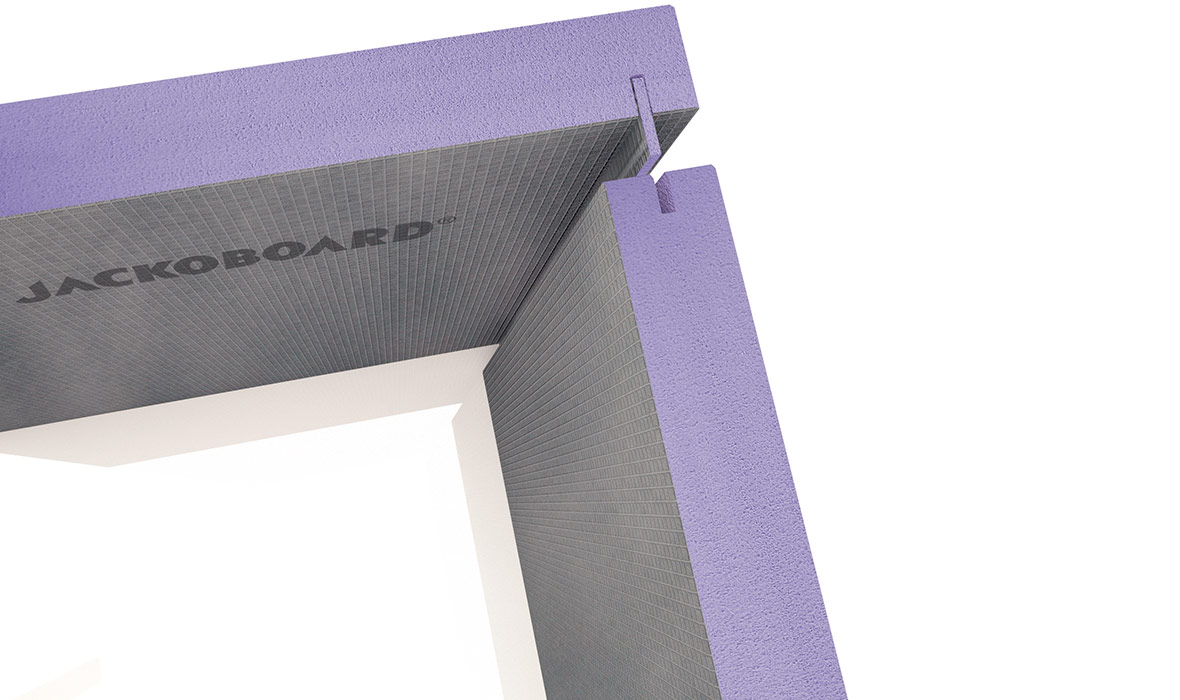

  • Clean corner formation
  • Precise flatness along joint areas
  • Easy to work with
  • Saves work and time because finishing materials can be applied directly: Wallpapers, paints, tiles, plasters and fillers
  • Can be cut to any dimension
  • Can be installed on nearly any substrate


Ideal application:

  • Ideal for efficient, time-saving interior construction with stable and flat joints and clean corners
Image 1 / 3
Image 2 / 3
Image 3 / 3
