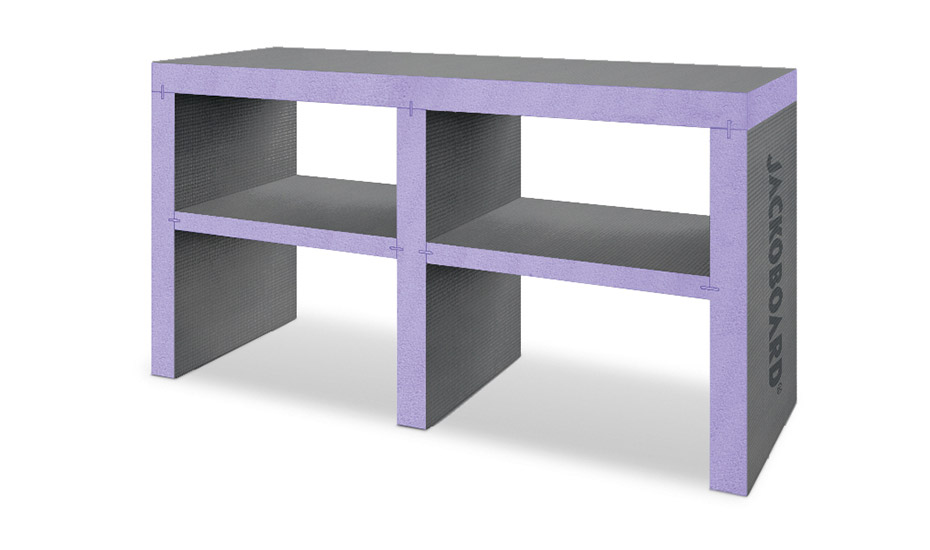

JACKOBOARD® Modula D1600

Installation kit for a double washstand.

Simple design, twice the room: Double washstand made of construction board

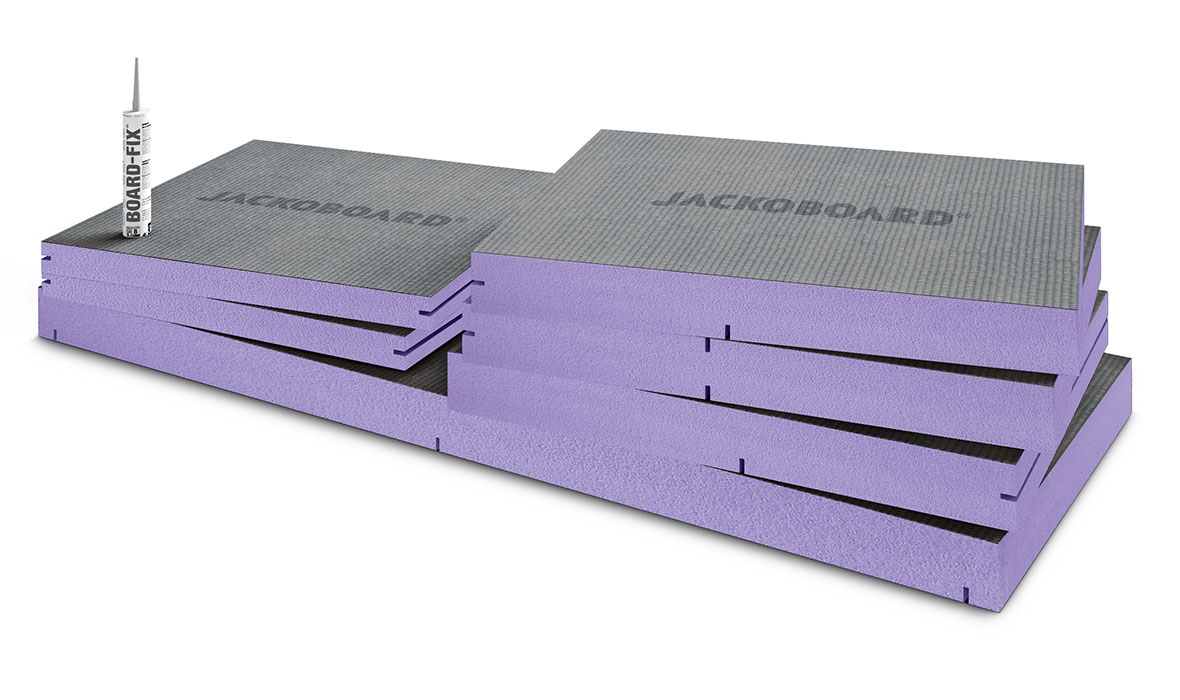

The JACKOBOARD® Modula D1600 installation kit enables fast and easy construction of a double washstand for custom bathrooms and wellness facilities. The installation kit includes two side walls, one center wall, one table top and two center shelves along with matching special adhesive, screws, mounting plate and assembly instructions. Their extruded polystyrene (XPS) foam core makes the elements water-repellent, and the special coating on both sides permits the direct application of tiles, plaster or filler without additional preparatory work. The installation kit is easy to work with and particularly suitable for rooms with high moisture.

Product characteristics JACKOBOARD® Modula D1600:

  • Made of extruded polystyrene foam
  • Water-repellent
  • With special coating on both sides
  • Low weight, approx. 3–6 kg/m2
  • High compressive strength > 300 kPa
  • Dimensions (WxHxD) 1600 mm x 850 mm x 600 mm
  • Thickness of table top and side walls: 80 mm
  • Center shelf thickness: 50 mm
  • Special sizes available on request
  • For rooms subject to high moisture loads


Benefits JACKOBOARD® Modula D1600:

  • Complete installation kit for a double washstand, including special adhesive, screws, mounting plate and assembly instructions
  • Tiles, filler or plaster can be applied directly
  • Easy to work with


Ideal application:

  • For the time-saving construction of customizable double washstands: tiles, filler or plaster can be applied directly.
