Level access shower elements in versatile configurations.

Stepless and flush-to-the-floor: The right way to construct wetroom shower areas.

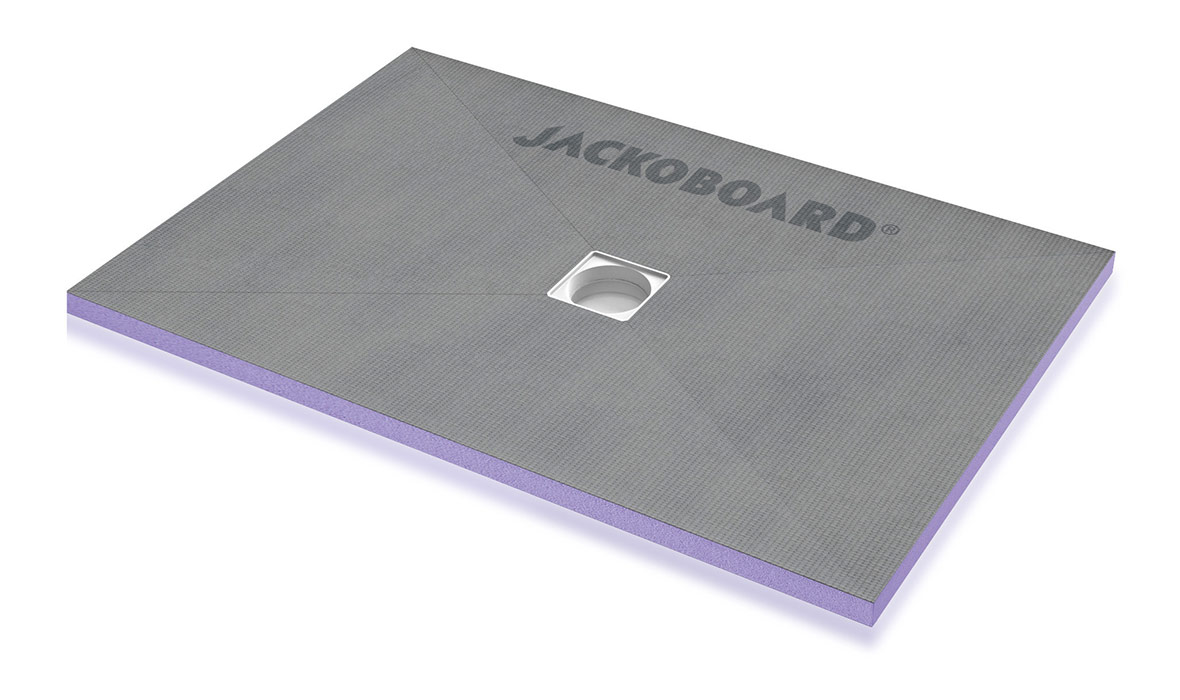

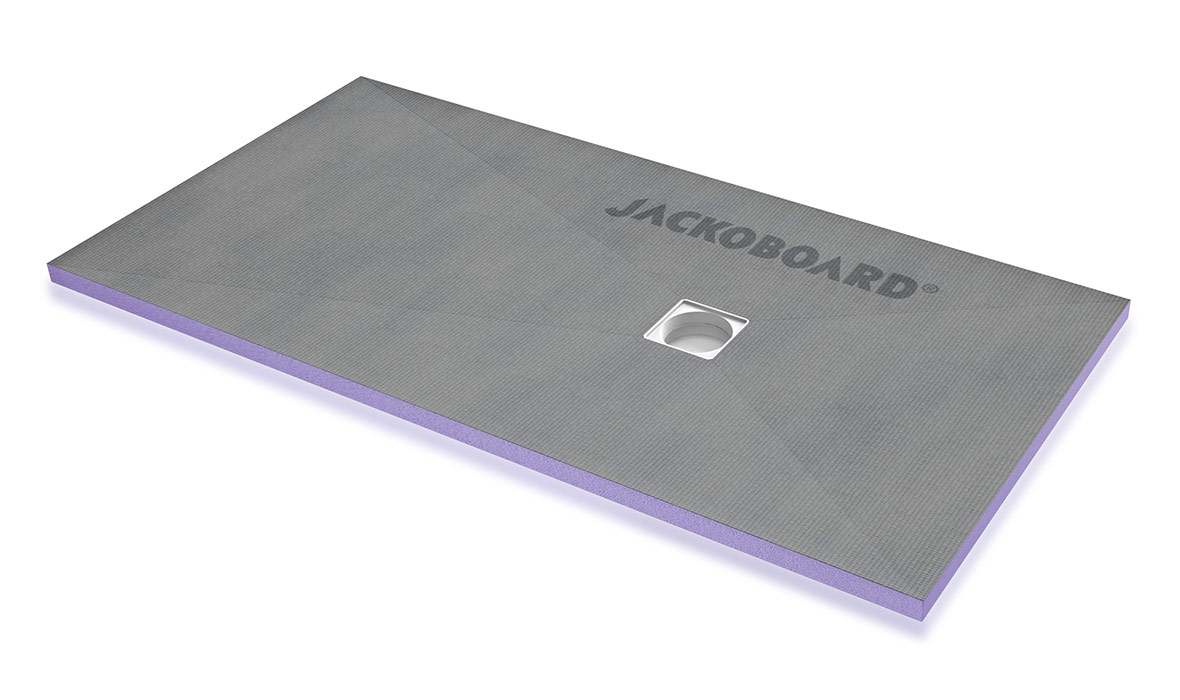

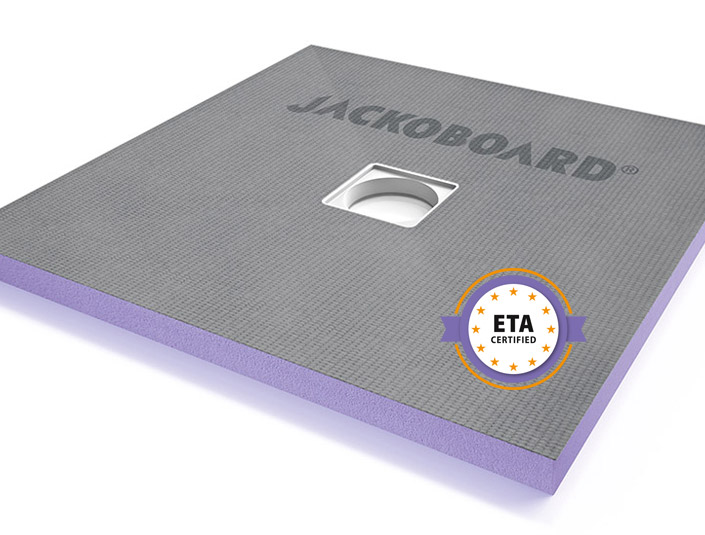

JACKOBOARD® Aqua shower elements offer individual design options for attractive bathroom design and are available in all standard formats and many custom shapes and sizes. They have a water-repellent core made of extruded polystyrene foam (XPS) and an incorporated drainage fall. They also feature a special coating on both sides that permits direct tiling without the need for additional preparatory work.

Product characteristics JACKOBOARD® Aqua:

  • Made of extruded polystyrene foam
  • Water-repellent
  • With special coating on both sides

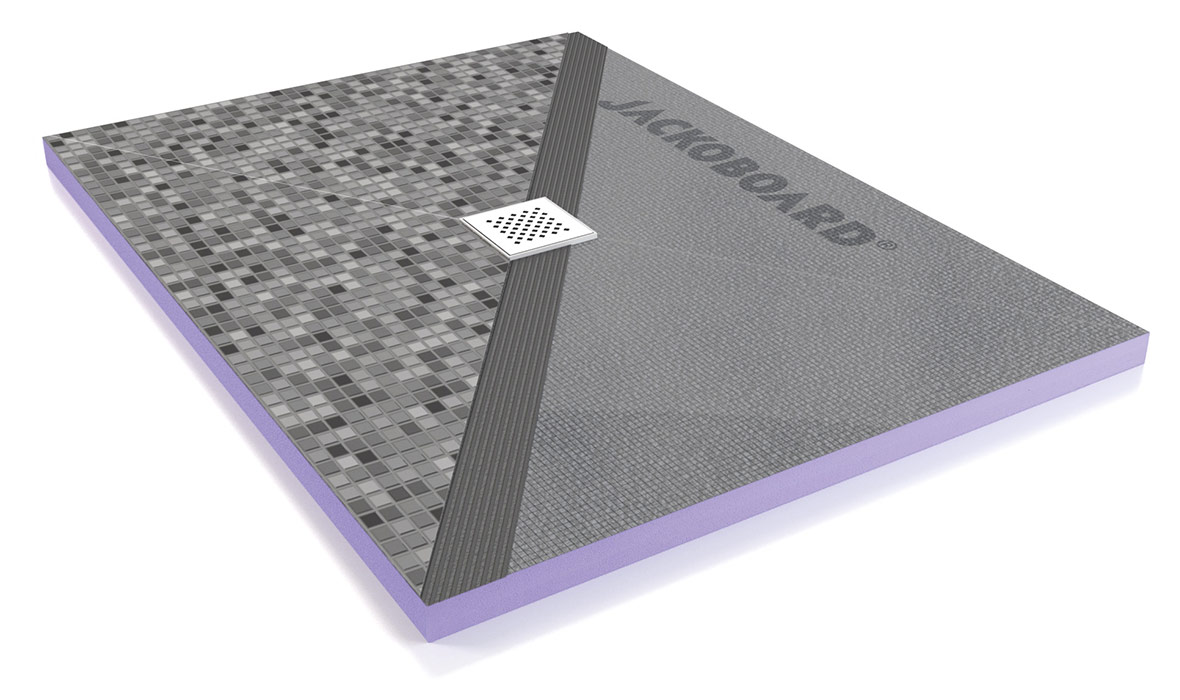

  • Tiles can be applied directly
  • Integral CNC-milled drainage fall
  • Thicknesses: 40 mm and 50 mm
  • Compressive strength > 300 kPa
  • Wheelchair-accessible
  • Excellent thermal insulation properties λD = 0.035 W/(m·K)
  • Drainage flow rate > 0.9 l/s

Benefits JACKOBOARD® Aqua:

  • Low installation height

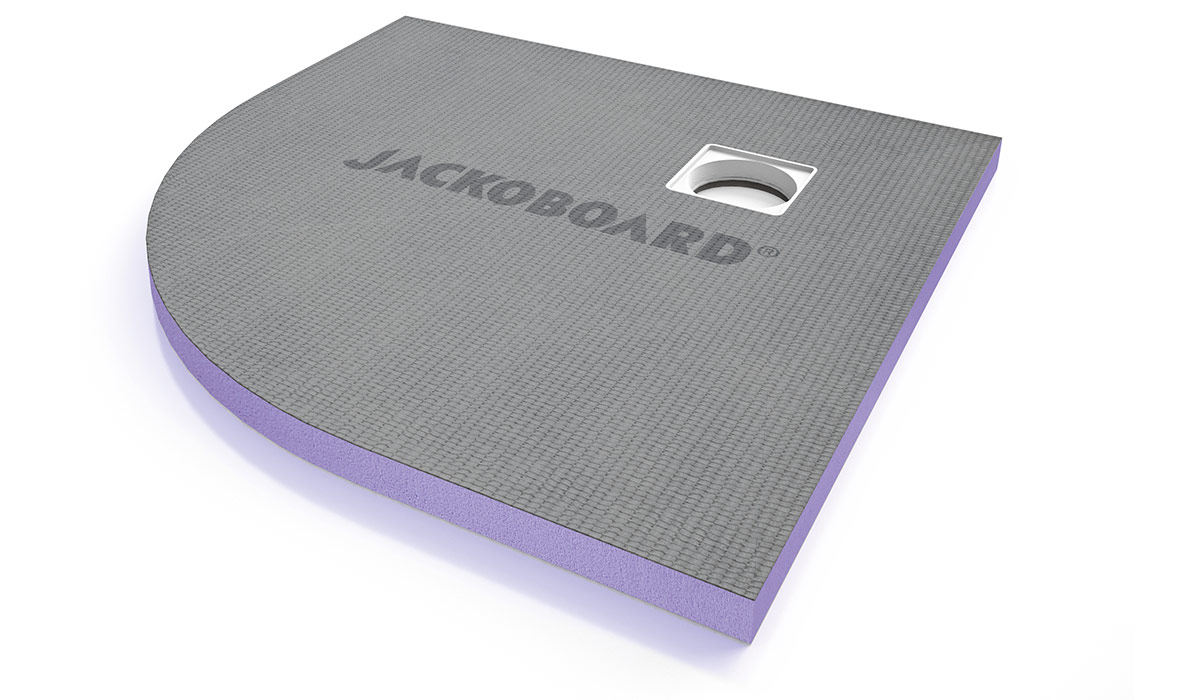

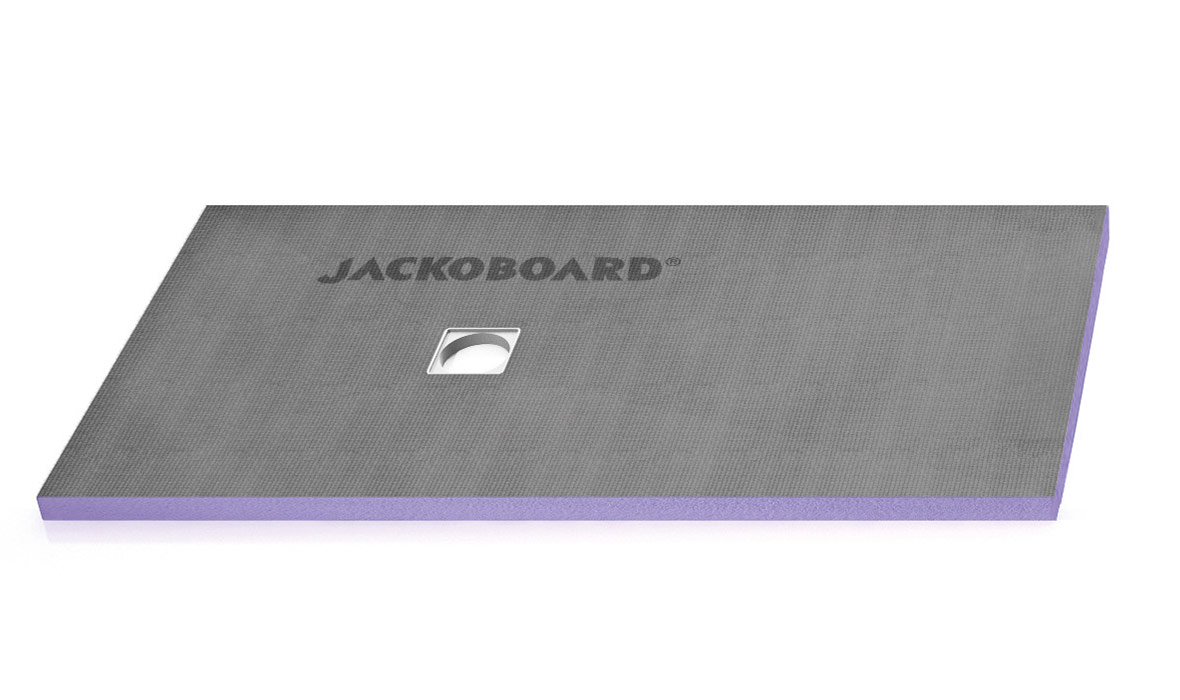

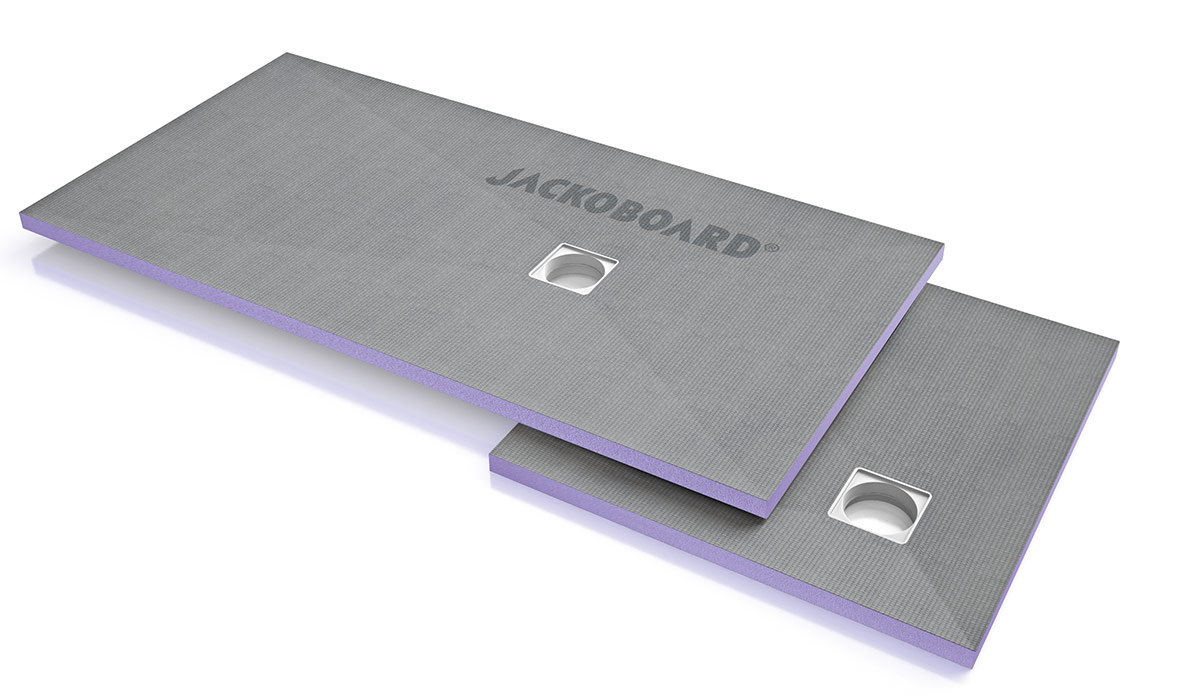

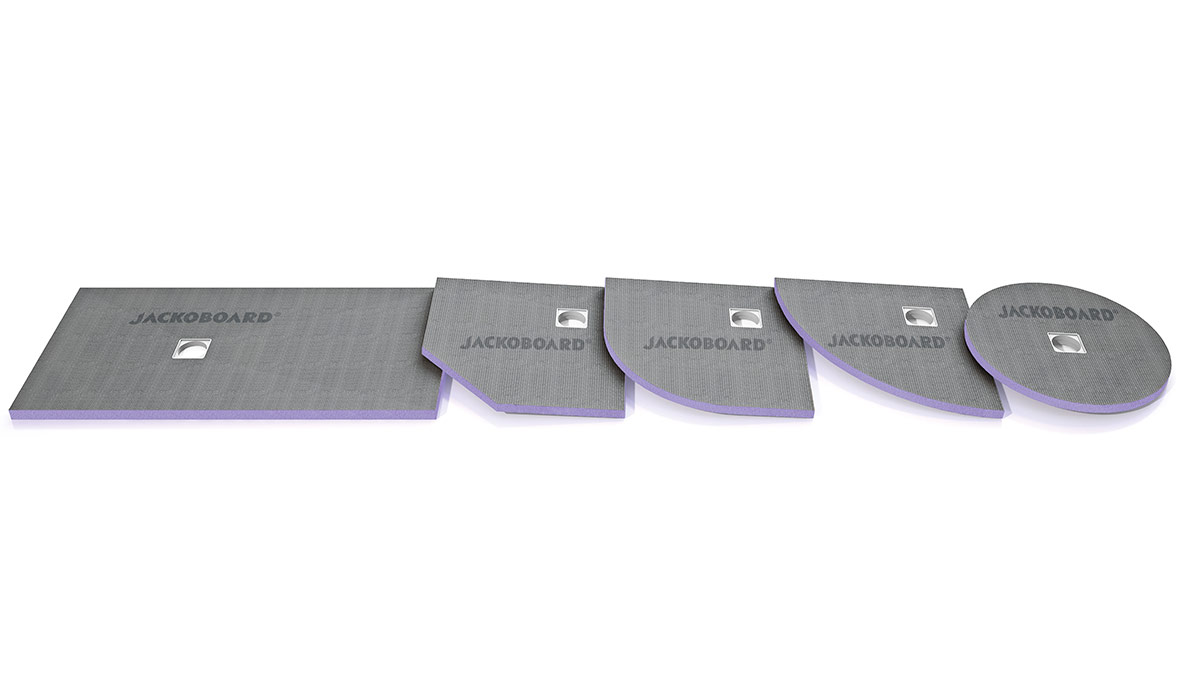

  • Available in many custom shapes and sizes (e.g. square, rectangular or semicircular, for the center of the room, along the wall or in the corner)

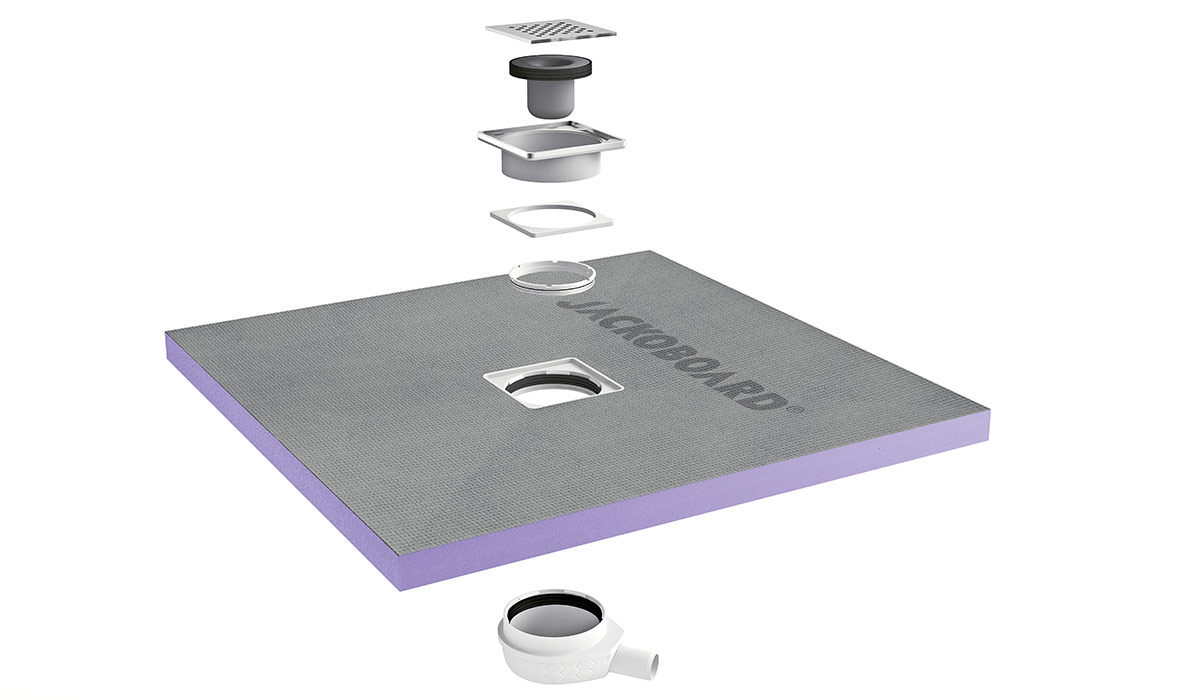

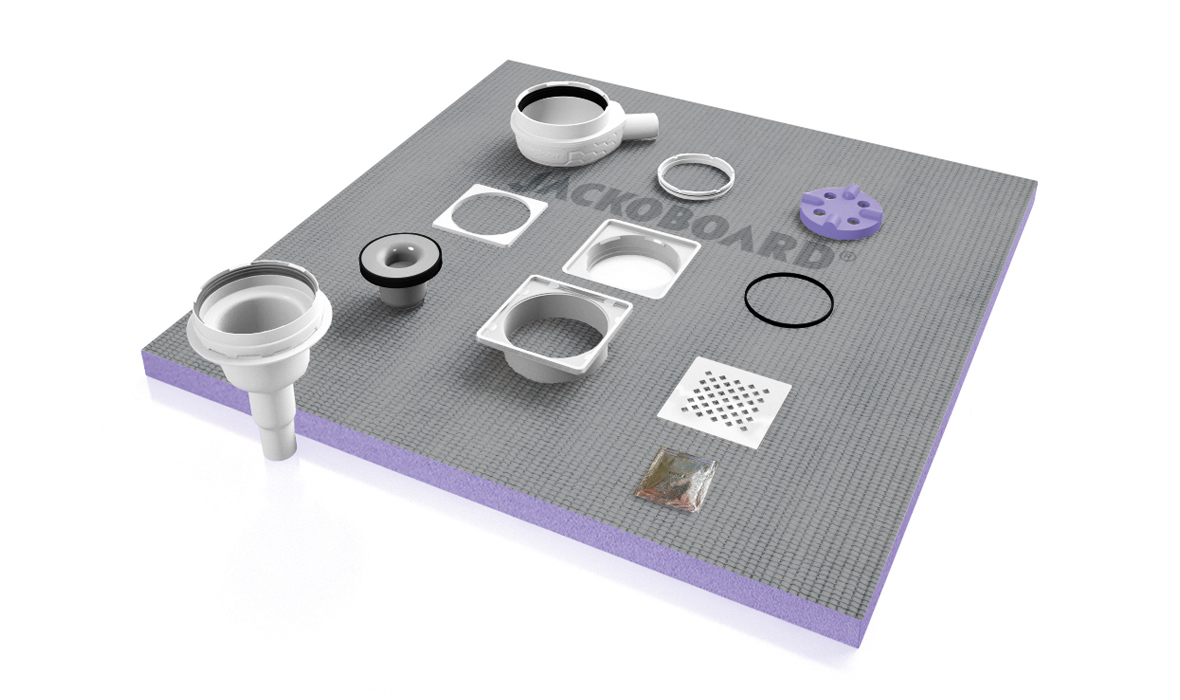

  • Different drain systems with a selection of individual positions, including solid stainless steel grate
  • Sealed drain flange

Ideal application:

  • For level access wetroom design
  • For wheelchair accesible showering
Image 1 / 9
Image 2 / 9
Image 3 / 9
Image 4 / 9
Image 5 / 9
Image 6 / 9
Image 7 / 9
Image 8 / 9
Image 9 / 9
Ideal applications for JACKOBOARD® Aqua
