JACKOBOARD® Aqua Spiral

Shower elements for directly tileable snail showers.

The complete system for stylishly shaped, barrier-free snail showers

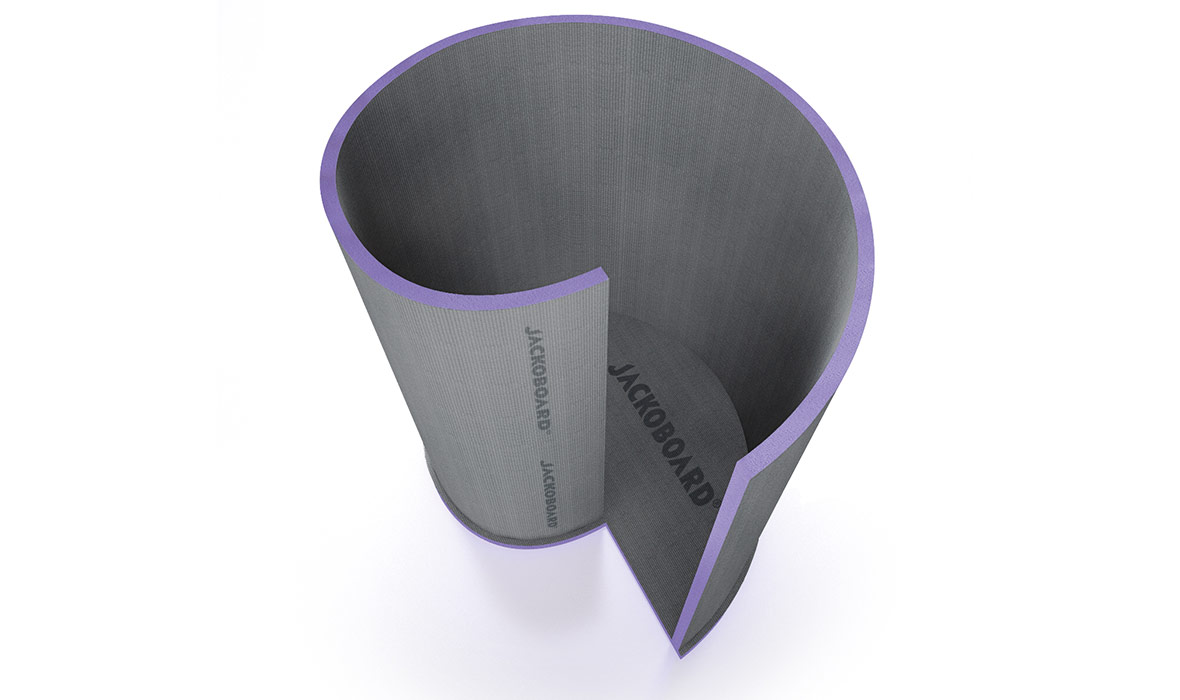

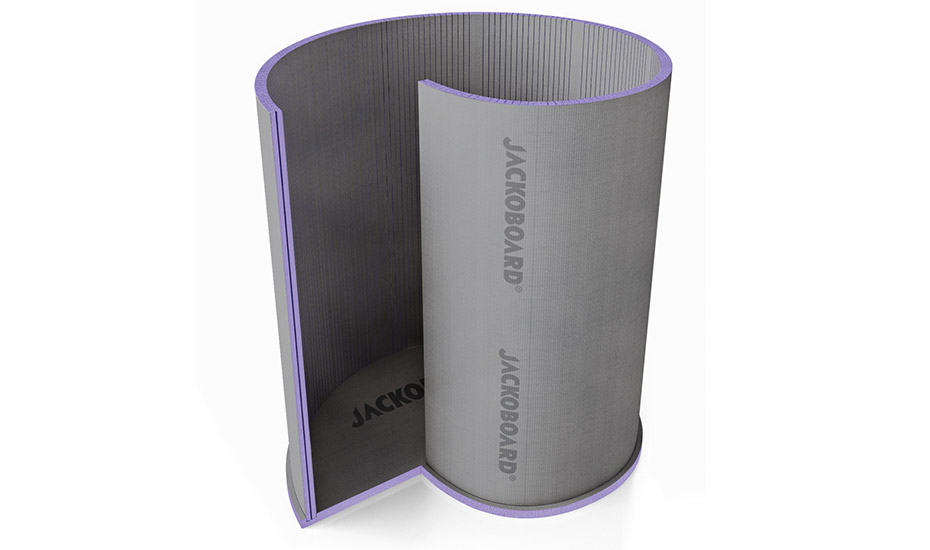

JACKOBOARD® Aqua Spiral shower elements are ideally suited for creating elegant, customized barrier-free wellness areas. They consist of individual partition walls with tongue-and-groove joints and a base element, enabling the easy, time-saving construction of an elegant, visually attractive snail shower with a harmonic spiral form. JACKOBOARD® Aqua Spiral shower elements combine all of the tried and tested benefits of the JACKOBOARD® Aqua series: They have an extruded polystyrene (XPS) foam core and a special coating on both sides that permits direct tiling.

Product characteristics – JACKOBOARD® Aqua Spiral:

Made of extruded polystyrene foam
Water-repellent
With special coating on both sides
Tiles can be applied directly
Floor element has low installation height of just 50 mm
Integral CNC-milled drainage fall with sealed drain flange
Choice of entry from left or right
Exterior dimensions 2055 x 1696 mm, height 2150 mm
Interior wall area approx. 10.7 m², exterior approx. 11.4 m²

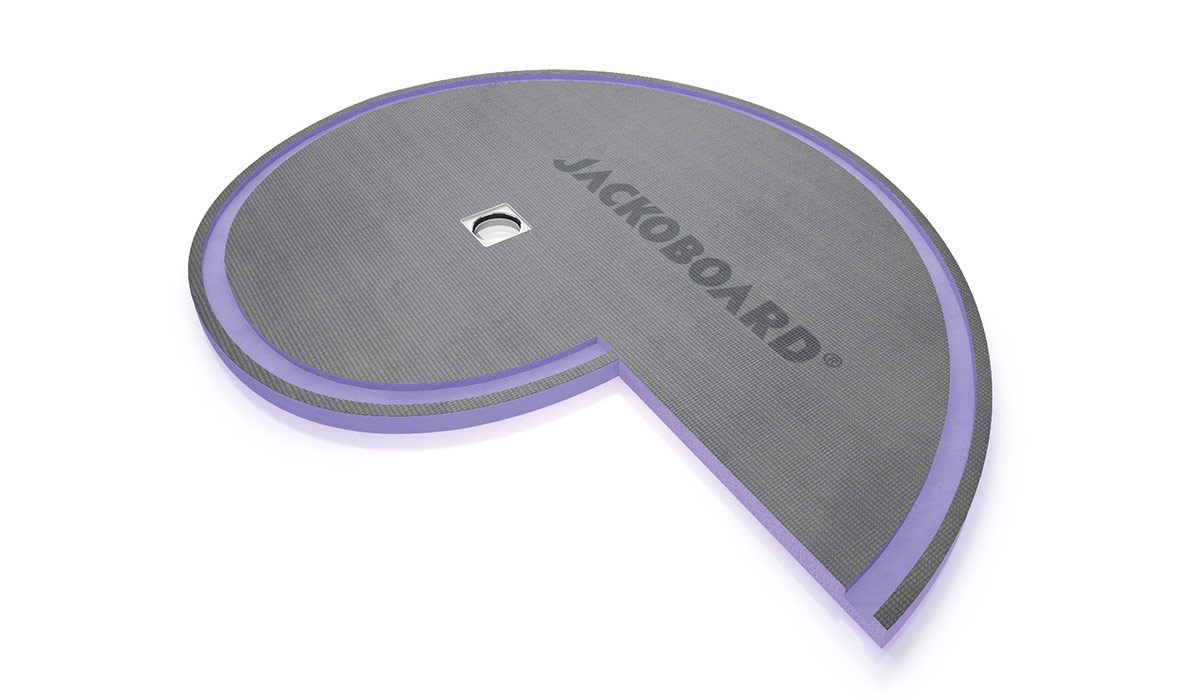

Floor element with milled groove for partition wall elements, interior area approx. 2.1 m²
Special sizes available on request
Excellent thermal insulation properties λ_D = 0.035 W/(m·K)
Wheelchair-accessible
Compressive strength > 300 kPa
