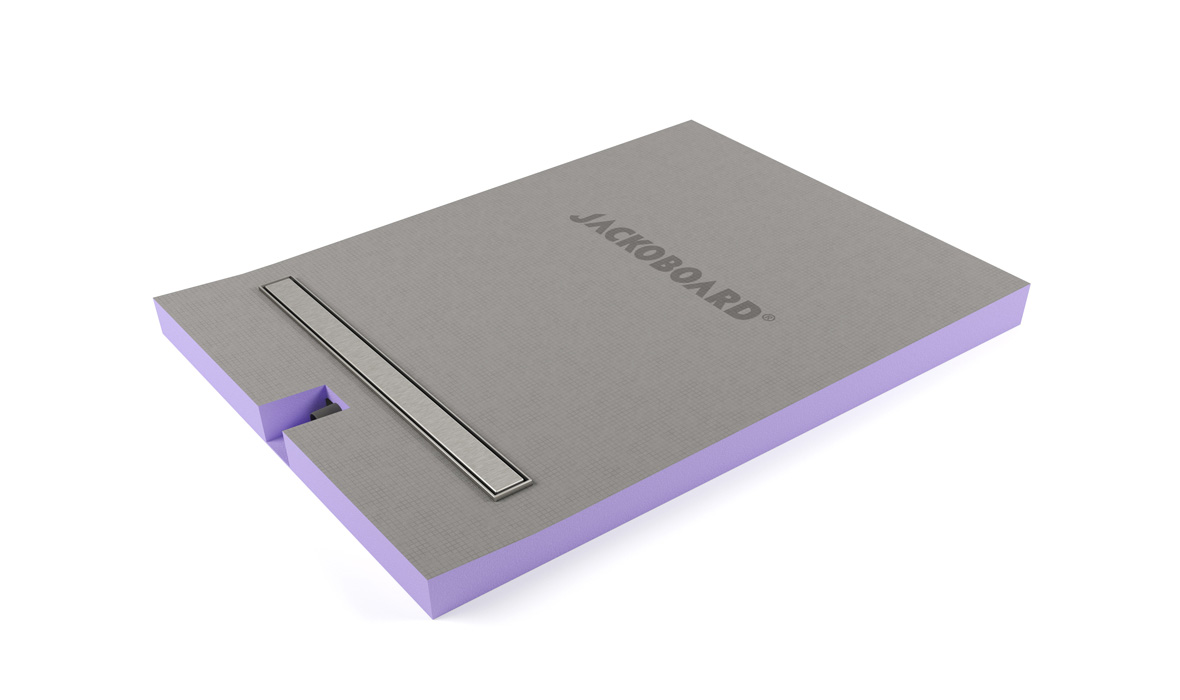

Product characteristics – JACKOBOARD® Aqua Reno Line:

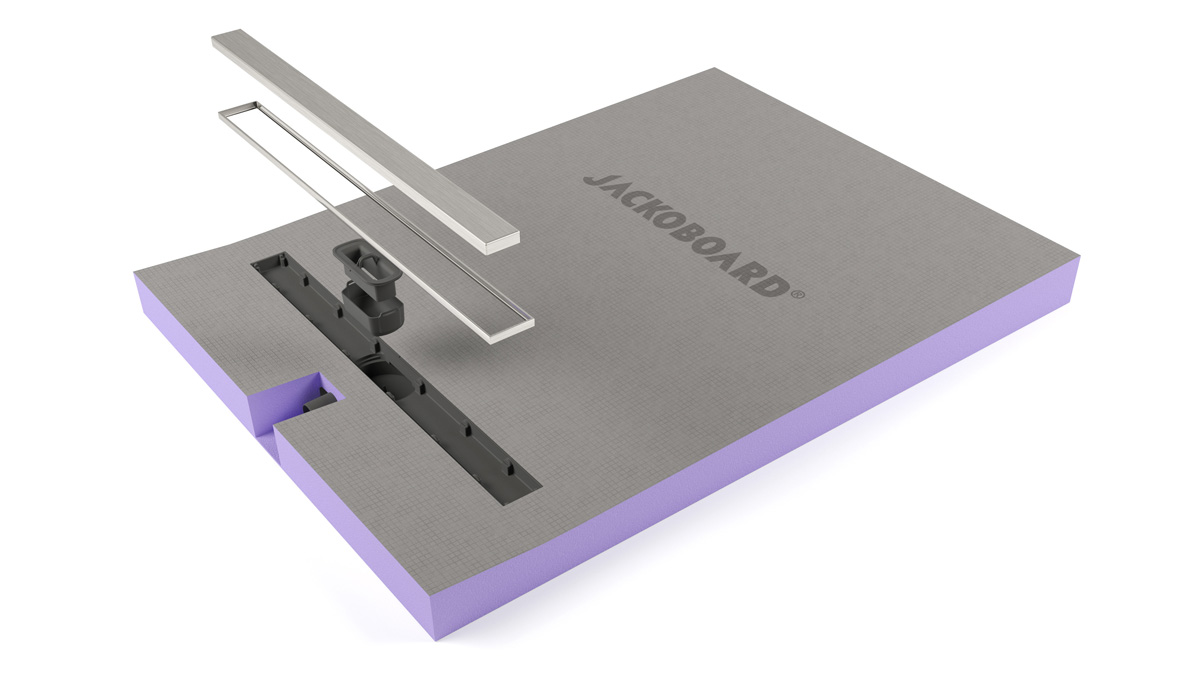

- Flush-to-floor shower element with reversible, rear-tileable brushed stainless steel drain channel
- Integrated, factory-sealed horizontal floor drain (DN 50)
- Includes odour trap
- Installation height: just 82 mm
- Two-sided built-in fall (incl. cross-fall on the outer edge of the drain)
- Drainage rate: 0.52 litres per second
- Available sizes: 900 x 900 mm, 900 x 1200 mm and 900 x 1800 mm
Benefits – JACKOBOARD® Aqua Reno Line:
- Exceptionally fast and clean installation: the integrated drain eliminates the need for screed work and long drying times
- Can be installed in just one working day
- Simplified on-site planning and installation
- For accessible, barrier-free showers, even where installation height is limited
- No standing water in shower corners thanks to the 2-way fall
- Choice of two design options: Visible stainless steel drain channel or continuous tile finish
- 100% waterproof XPS core for long-lasting security
Ideal application:
- Flush-to-floor, ready-to-tile shower solutions with flexible drainage channel, suitable for both new builds and renovations
- Projects where short installation times and fixed budget requirements are crucial (e.g., urgent renovations for accessible and/or age-friendly living)
