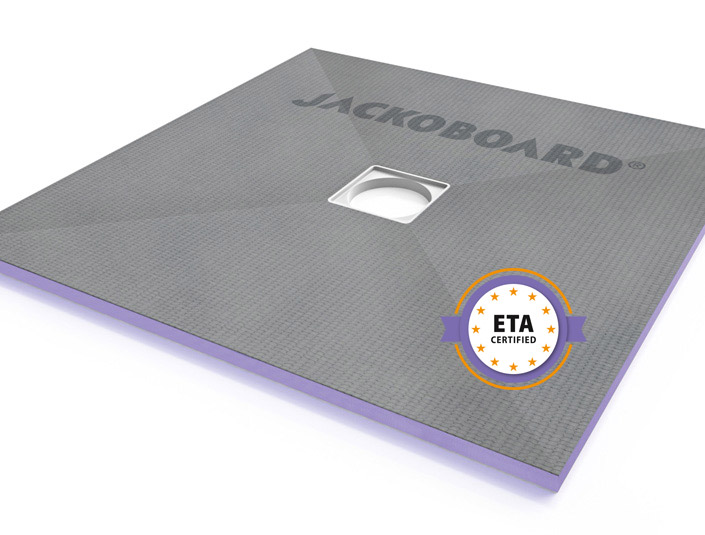

JACKOBOARD® Aqua Flat

Super thin shower element with integrated fall.

Ideal for level access showering on suspended timber floors

At just 20 or 25mm thick, JACKOBOARD® Aqua Flat shower elements are ideally suited for building level access showers on suspended timber floors. They have a water-repellent core made of extruded polystyrene foam (XPS) and an extremely low installation height with an incorporated drainage fall. They also feature a special coating on both sides that permits direct tiling without the need for additional preparatory work.

Product characteristics JACKOBOARD® Aqua Flat:

Made of extruded polystyrene foam
Water-repellent
With special coating on both sides
Tiles can be applied directly
Integral CNC machines drainage fall
Thicknesses: 20 or 25 mm
Excellent thermal insulation properties λ_D = 0.035 W/(m·K)
Drainage flow rate > 0.9 l/s
Wheelchair-accessible
Compressive strength > 300 kPa

Benefits JACKOBOARD® Aqua Flat:

Extremely low installation height
Available in many custom shapes and sizes (e.g. square, rectangular)
Different drain systems with a selection of individual positions, including solid stainless steel grate
Sealed drain flange
