Construction elements for cladding bathtubs.

The system solution for efficient bathtub construction.

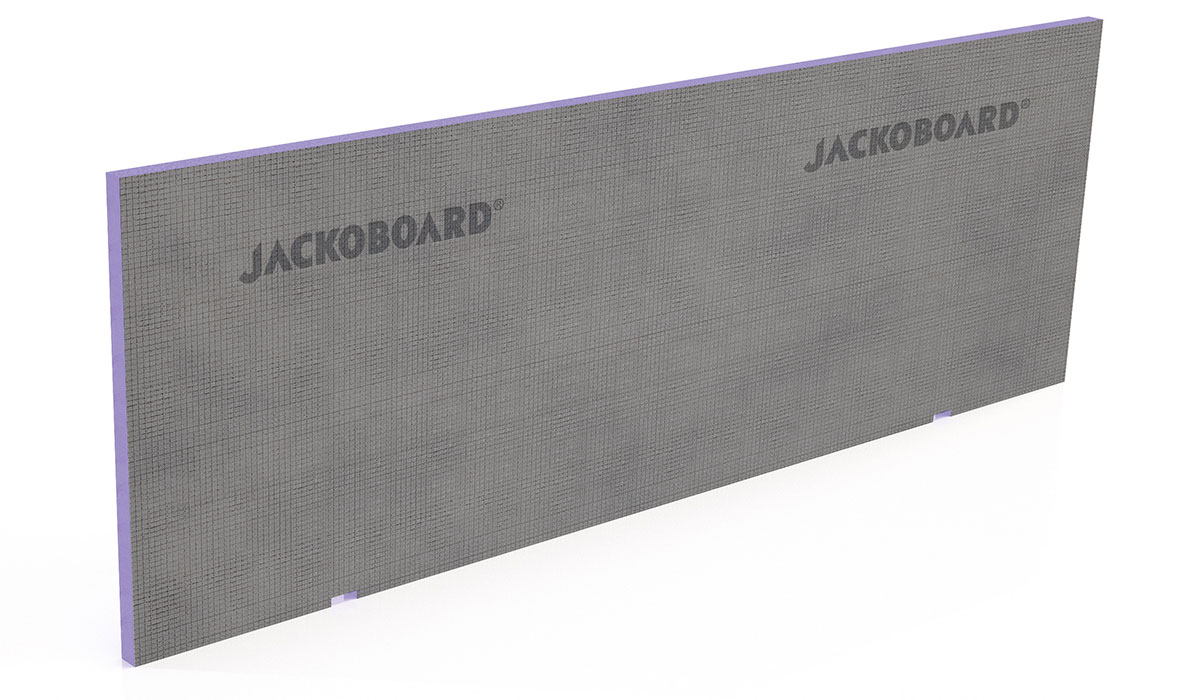

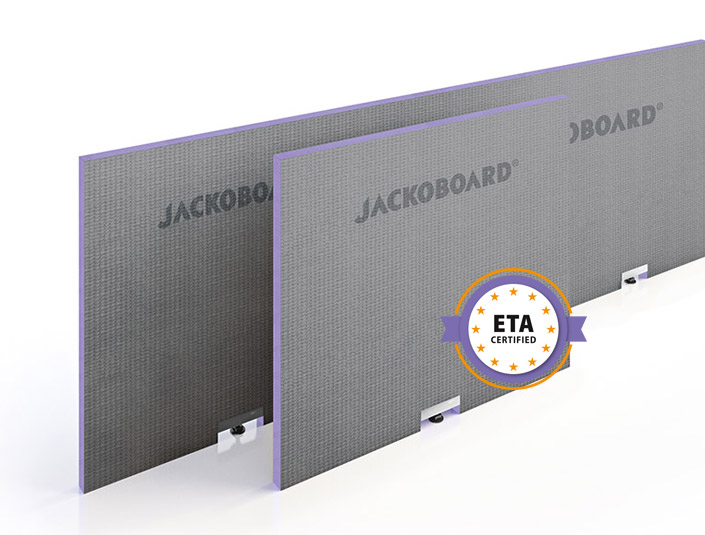

JACKOBOARD® Wabo tub construction elements are specially designed for the easy and time-saving cladding of bathtubs. They are easy to work with and their four different formats and height-adjustable feet facilitate the cladding of all standard bathtub models. With their water-repellent extruded polystyrene (XPS) foam core and special coating on both sides, they can be finished directly with tiles, plaster or filler compound.

Product characteristics JACKOBOARD® Wabo:

  • Made of extruded polystyrene foam
  • Water-repellent
  • With special coating on both sides
  • Low weight, approx. 3–6 kg/m2
  • Thickness: 30 mm
  • Formats: (UK 2100 x 600, 1850 x 600, 850 x 600)
  • Excellent thermal insulation properties with λD = 0.035 W/(m·K)
  • High compressive strength > 300 kPa
  • For rooms subject to high moisture loads

Benefits JACKOBOARD® Wabo:

  • Easy to work with
  • Can be trimmed to size
  • Tiles, filler or plaster can be applied directly

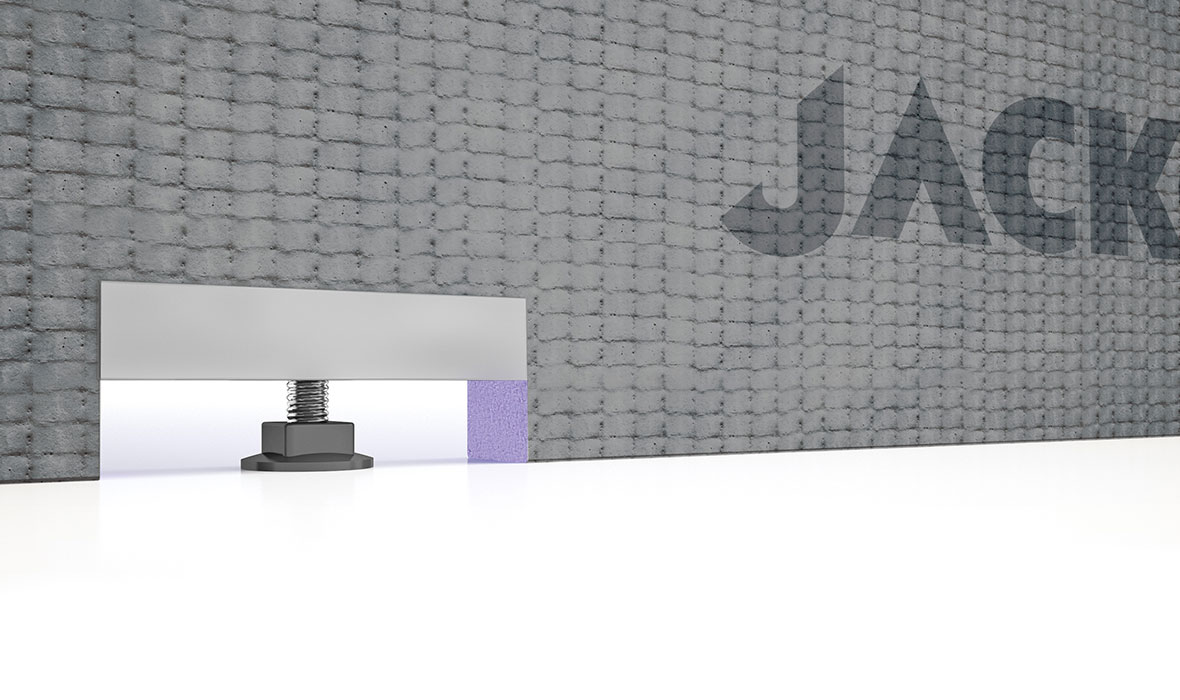

  • With height-adjustable feet
  • Easy to install

Ideal application:

  • For fast, easy cladding of all standard bathtub models and for further processing and finishing directly with tiles, plaster or filler compound.
