The time-saving angle element.

Ideal for corners, reveals and pipe boxing.

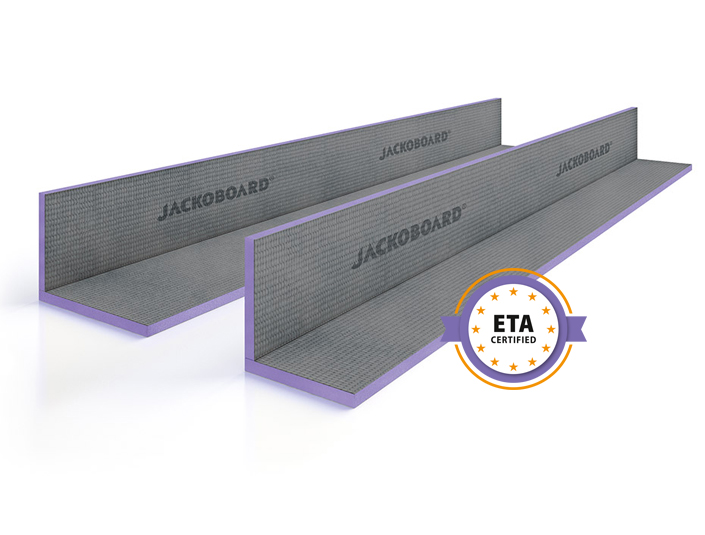

JACKOBOARD® Canto angle elements are the ideal complement to JACKOBOARD® Plano construction boards and enable the time-saving construction of visually attractive interior cladding, e.g. for conduits and pipes. With their non-woven coating on both sides, they save time because tiles, filler or plaster can be applied directly without pretreatment. Their extruded polystyrene (XPS) foam core makes them water-repellent, easy to work with and particularly well-suited for rooms with high moisture.

Product characteristics JACKOBOARD® Canto:

  • Made of extruded polystyrene foam
  • Water-repellent
  • With special coating on both sides
  • Low weight, approx. 3–6 kg/m2
  • Thickness: 20 mm
  • Length: 2600 mm
  • Angle dimensions: 150 x 150 mm, 200 x 200 mm, 300 x 300 mm and 200 x 400 mm
  • Can be cut to any length
  • Special U-shape formats available on request
  • Excellent thermal insulation properties
  • High compressive strength
  • For rooms subject to high moisture levels

Benefits JACKOBOARD® Canto:

  • For corners, reveals and pipe coverings
  • For versatile finishing with tiles, plaster or filler compound
  • Installation on nearly any substrate

Ideal application:

  • Supplementary angle element for JACKOBOARD® Plano, for the time-saving and visually attractive construction of corners as well as pipe and conduit boxing – which can be finished directly in a variety of designs using different materials: Tiles, filler or plaster.
