JACKOBOARD® Aqua Reno

Tileable shower element with integrated drain.

The level access system solution for fast renovation

With their minimal installation height of just 65 mm and drainage system integrated within the shower element, JACKOBOARD® Aqua Reno shower elements are particularly well-suited for renovation work in older buildings with a low floor installation height or where the existing floor cannot be disturbed. They have a water-repellent core made of extruded polystyrene foam (XPS) and a special coating on both sides that permits direct tiling without the need for additional preparatory work. Their integrated floor drain eliminates the need disturbing the floor – therefore saving time and money during installation.

Product characteristics – JACKOBOARD® Aqua Reno:

  • Made of extruded polystyrene foam
  • Water-repellent
  • With special coating on both sides
  • Tiles can be applied directly
  • Minimal installation height of just 65 mm
  • Incorporated drainage fall
  • Square or rectangular shape
  • Dimensions: 900 x 900, 1400 x 900 and 1800 x 900 mm
  • Custom shapes and sizes available on request
  • Excellent thermal insulation properties λD = 0.035 W/(m·K)
  • Drainage flow rate 0.5 l/s
  • Water trap height: 22 mm
  • Wheelchair-accessible
  • Compressive strength > 300 kPa


Benefits – JACKOBOARD® Aqua Reno:

  • Ideal for use in existing construction – especially in older buildings
  • With integrated drainage system, incorporated fall and inspection chamber element

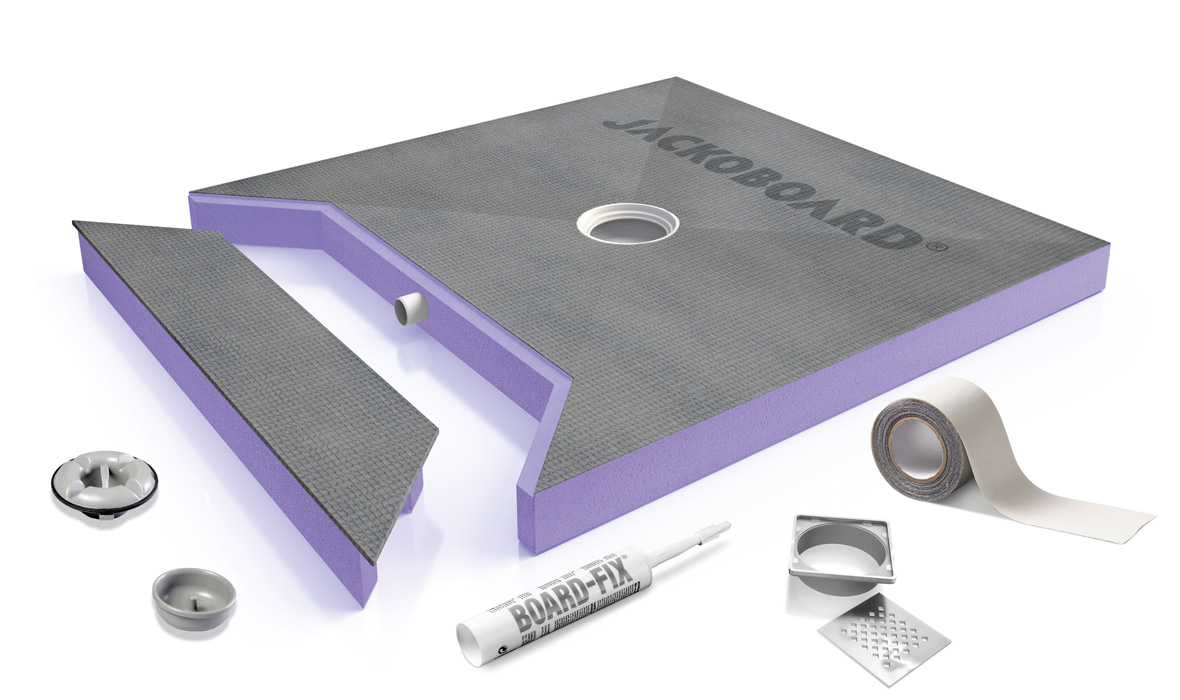

  • Supplied complete with high quality stainless steel grate, special adhesive and 10 m sealing tape


Ideal application:

  • JACKOBOARD® Aqua Reno shower elements are ideally suited as a barrier-free system solution for bath renovation in existing construction.

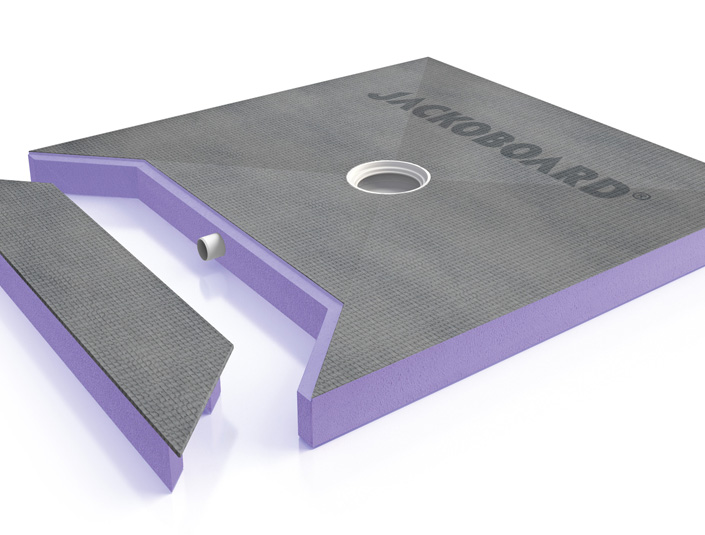

Image 1 / 2

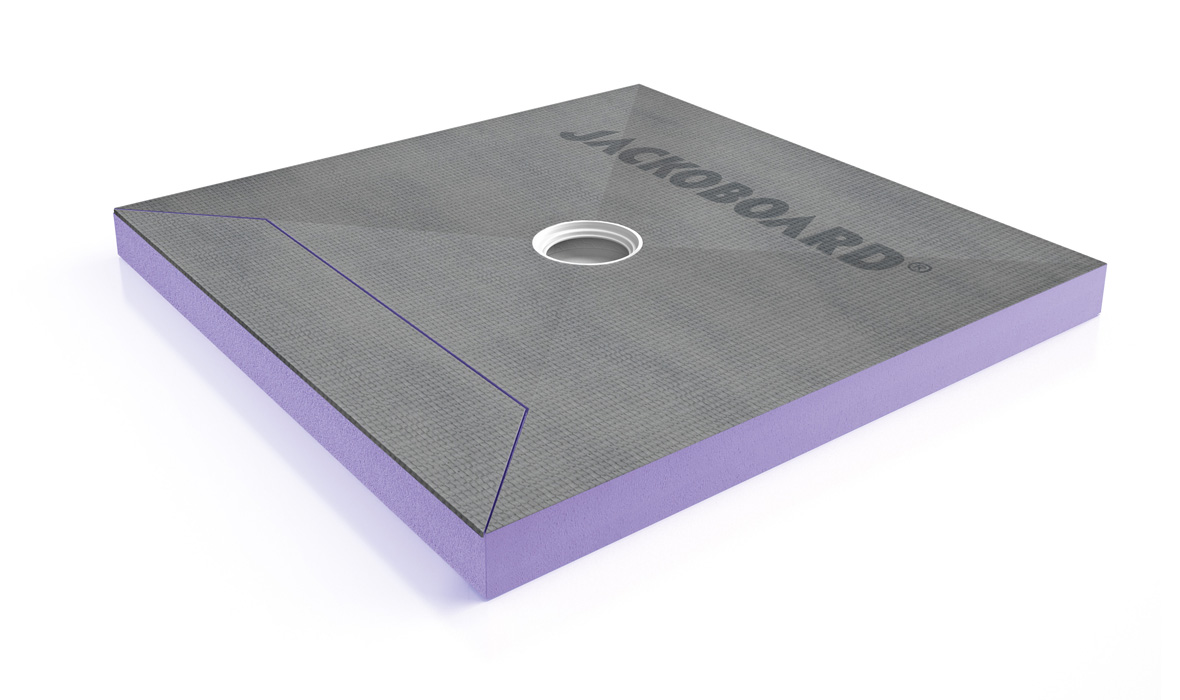

Image 2 / 2
Ideal applications for JACKOBOARD® Aqua Reno
