JACKOBOARD<sup>®</sup> Aqua Line pro

JACKOBOARD® Aqua Line pro

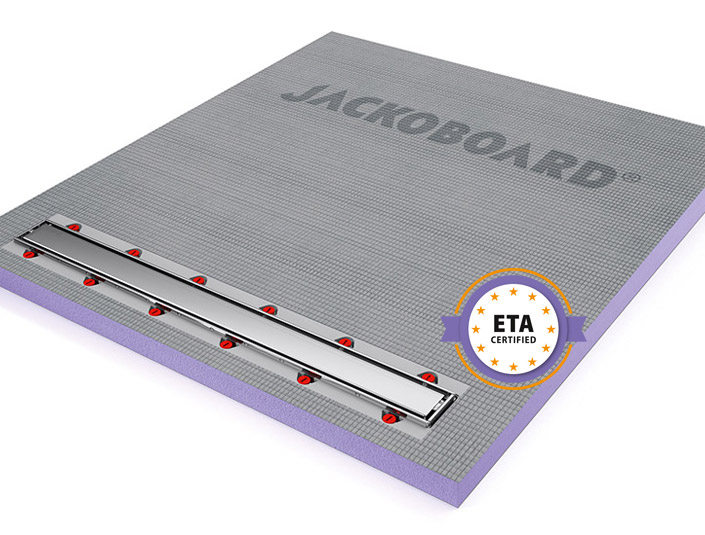

Tileable shower element with brushed stainless steel drainage channel.

Combines attractive styling with convenience.

With a frame that can be adjusted to a height of 6-21 mm, JACKOBOARD® Aqua Line pro shower elements are ideal for use with different tile thicknesses and provide impressive results with the tried and tested benefits of the entire JACKOBOARD® Aqua series: With a core made of extruded polystyrene foam (XPS) and special water-repellent coating on both sides, these shower elements are ideal for the construction of level access, barrier-free showers. Tiles can also be applied directly to them, and they feature an integrated drainage fall.

Product characteristics – JACKOBOARD® Aqua Line pro:

  • Special water-repellent coating on both sides
  • Tiles can be applied directly
  • Thicknesses: 60/43, 70/43, 80/43
  • Integral CNC-milled drainage fall
  • With 1-way fall in the formats: 1000 x 900 mm, 1200 x 900 mm, 1100 x 1000 mm, 1400 x 900 mm, 1800 x 900 mm, 1200 x 1100 mm, 1400 x 1300 mm
  • With 4-way fall in the format: 1600x1000 mm
  • Custom shapes and sizes available on request
  • Excellent insulation properties (λD = 0.035 W/(m·K)
  • High drainage rate, up to 1.05 litres/sec
  • Water trap height: 50 mm
  • Wheelchair-accessible
  • Compressive strength > 300 kPa


Benefits – JACKOBOARD® Aqua Line pro:

  • With a frame that can be adjusted to a height of 6-21 mm to accommodate different tile thicknesses
  • Bar and frame made of stainless steel with smooth surface and self-cleaning effect

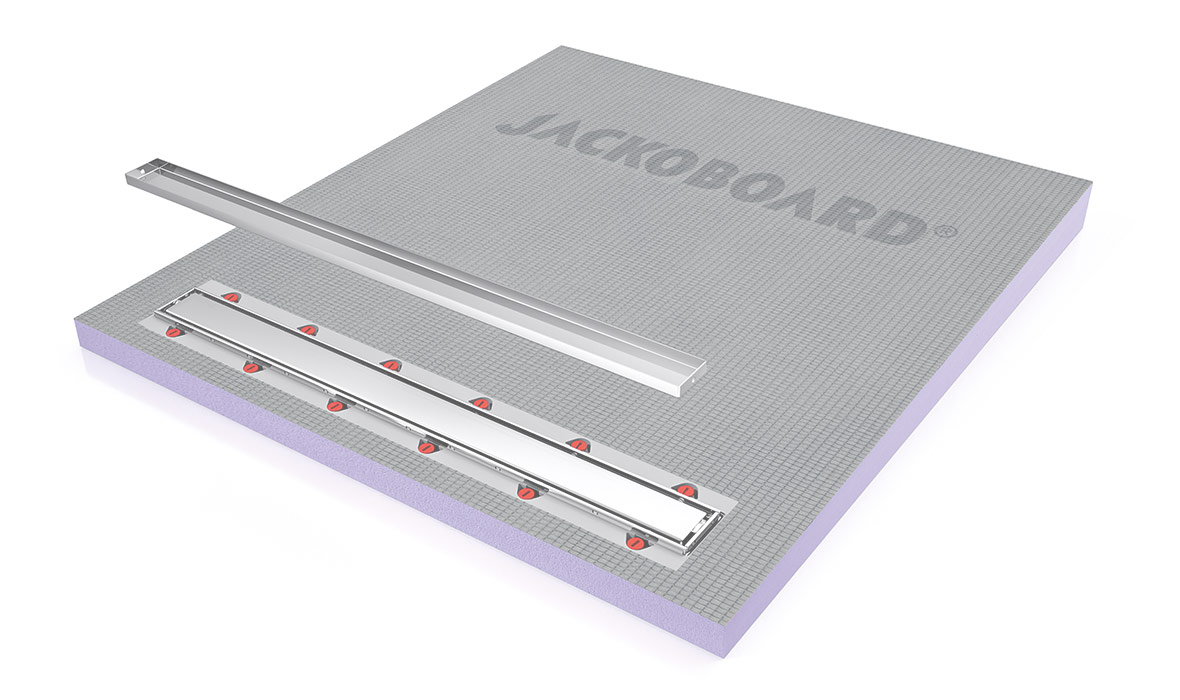

  • Bar can be inserted upside down and tiled on the back
  • Smooth, easy-clean
  • surface with self-cleaning effect
  • Low installation height
  • For barrier-free showering, wheelchair-accessible


Ideal application:

  • The system solution for creating visually attractive level access showers with a stainless steel channel that can accommodate a broad range of tile thicknesses.
Image 1 / 1
Ideal applications for JACKOBOARD® Aqua Line pro
