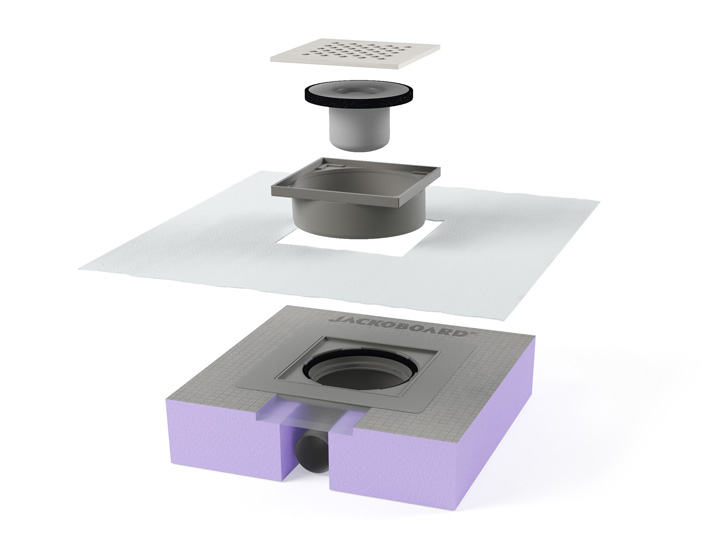

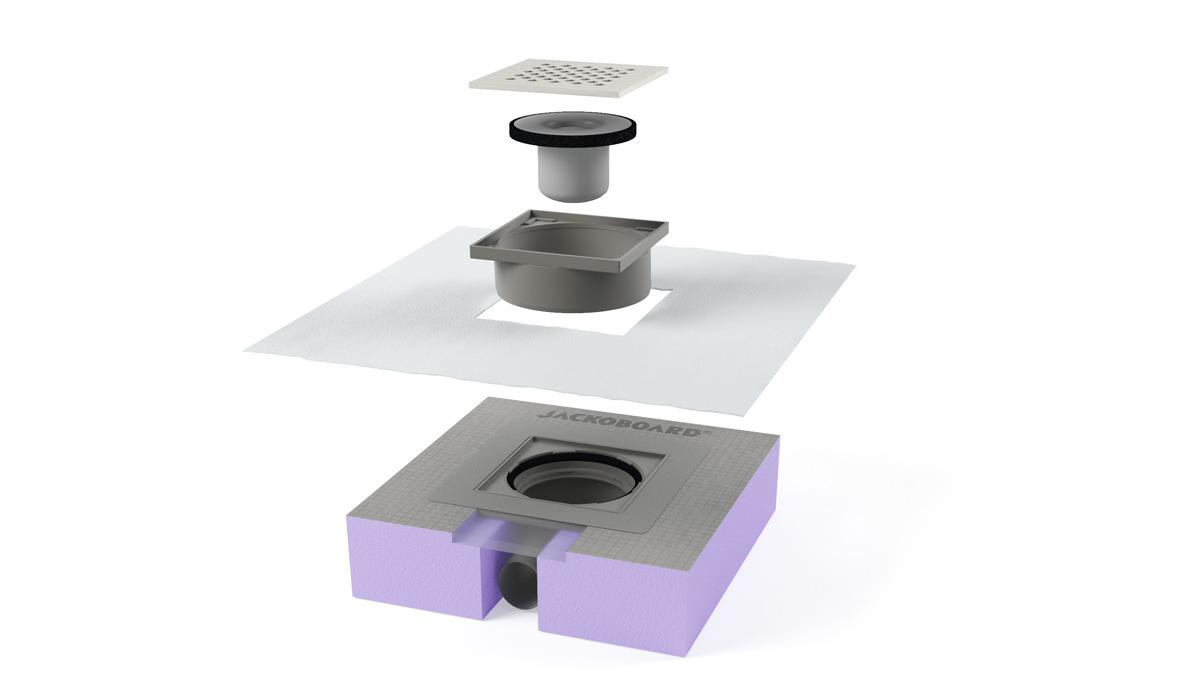

Product characteristics JACKOBOARD® Aqua Connect:

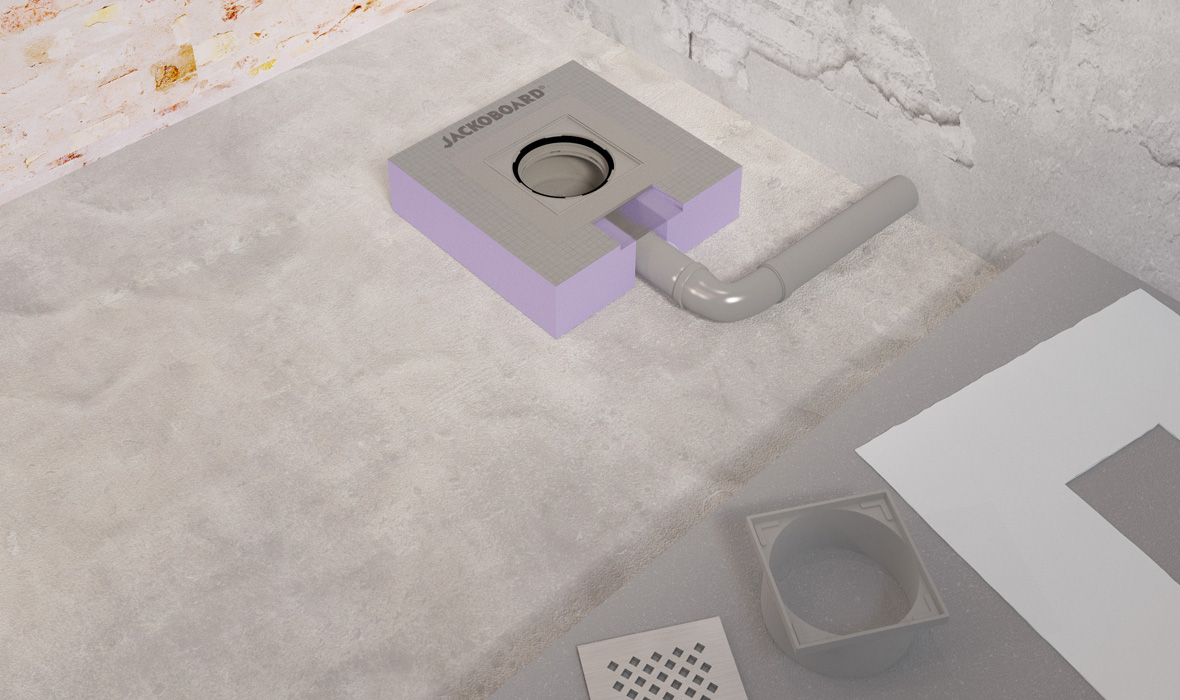

- Integrated horizontal floor drain (DN 50)
- Installation height: just 70 mm
- High drainage rate: 1.0 litres per second
- Supplied with JACKOBOARD® Aqua designer grate in solid, brushed stainless steel
- Includes separate sealing collar for secure waterproofing
- Compatible with liquid waterproofing systems
Benefits JACKOBOARD® Aqua Connect:
- Significantly simplifies the creation of sloped screed for level-access showers in both new build and refurbishment
- Reduces the workload for tilers and installers, saving valuable installation time
- Easy to position the drain flexibly within the shower area as needed
- Extra-low installation height is ideal for creating barrier-free shower solutions
- Grate frame height adjustable between 8–31 mm to accommodate different tile thicknesses
- High-quality stainless steel grate provides a sleek, contemporary look for modern bathrooms
Ideal application:
- Professional creation of sloped screed in combination with liquid waterproofing systems

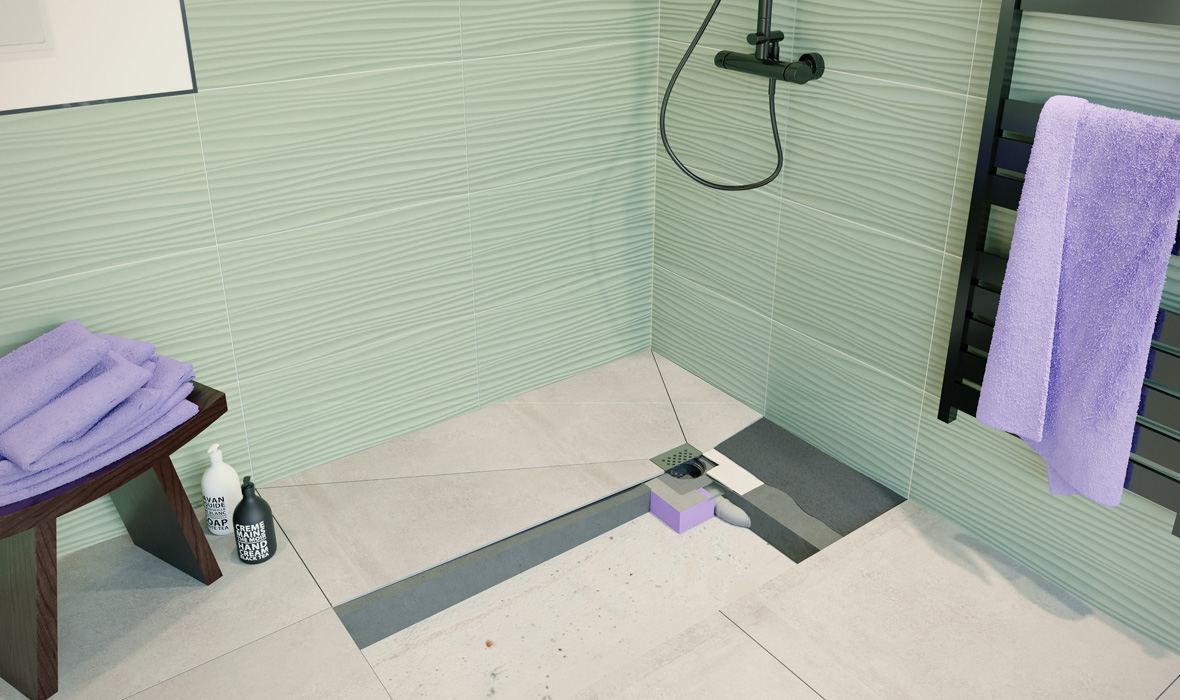

- For level-access showers with flexible drain positioning
- Perfectly suited for bespoke shower solutions, both in new-build projects and in renovations where installation height is limited
