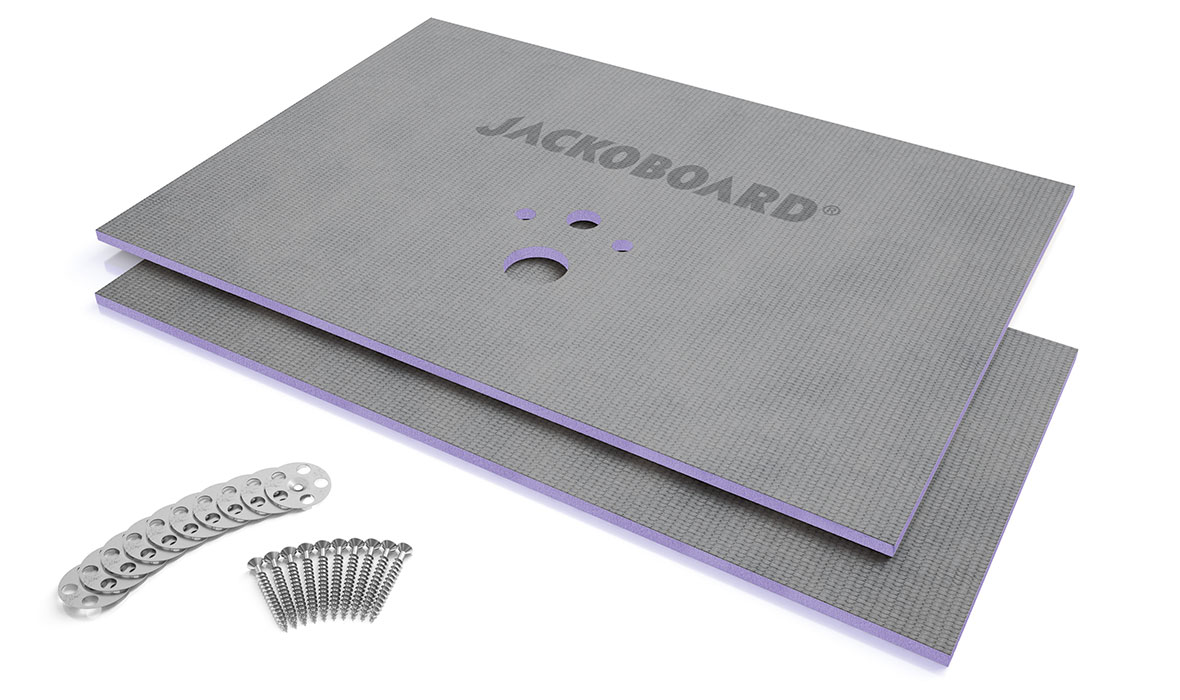

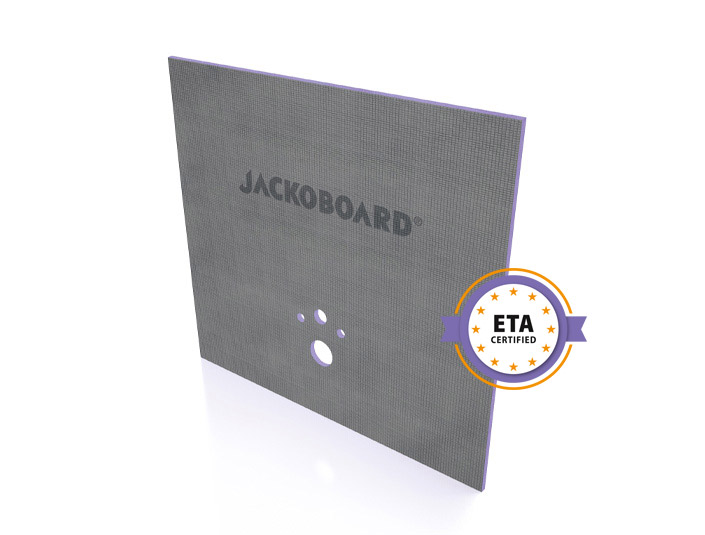

JACKOBOARD® Sabo

Board for cladding WC elements

Suitable for all standard toilet connections.

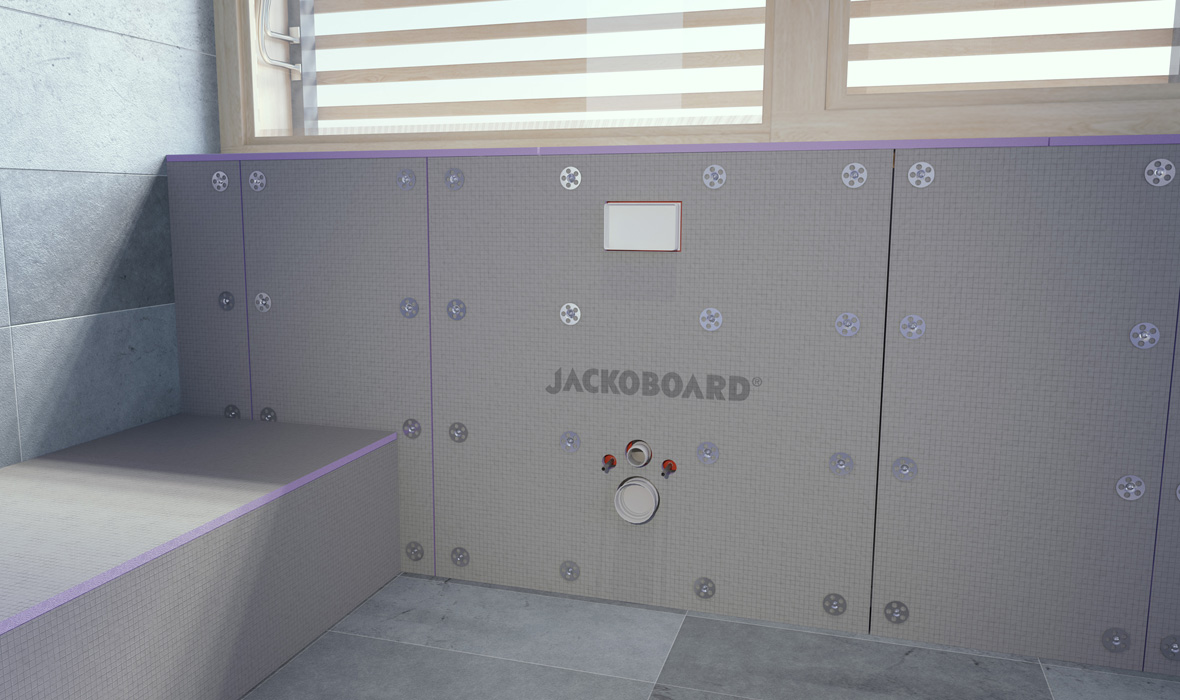

The JACKOBOARD® Sabo element is the ideal solution for quickly and easily cladding WC elements when renovating bathrooms or in new buildings. The dimensions of the special element and the cut-outs are adapted to the usual installation situations of WC pre-wall elements. Thanks to the extruded polystyrene core, it is especially pressure-resistant despite its low weight. You can tile directly onto the special coating on the construction board.

Product characteristics JACKOBOARD® Sabo:

Made of extruded polystyrene foam
Water-repellent
With special coating on both sides
Low weight, approx. 3–6 kg/m²
Thickness: 20 mm

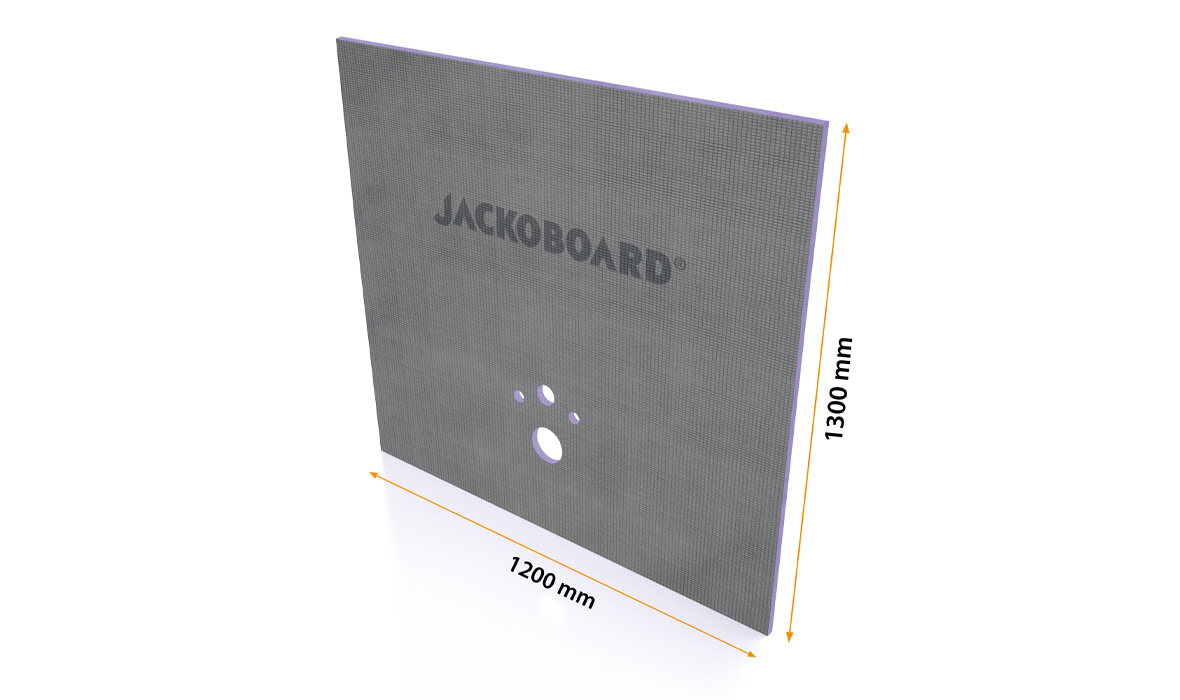

Board dimensions: 1300 x 1200 mm
Excellent thermal insulation properties
High compressive strength
For rooms subject to high moisture loads

Benefits JACKOBOARD® Sabo:

For all standard toilet frame systems
Easy to install
Tiles can be applied directly
Wide construction board means fewer joints and faster assembly

Ideal application:

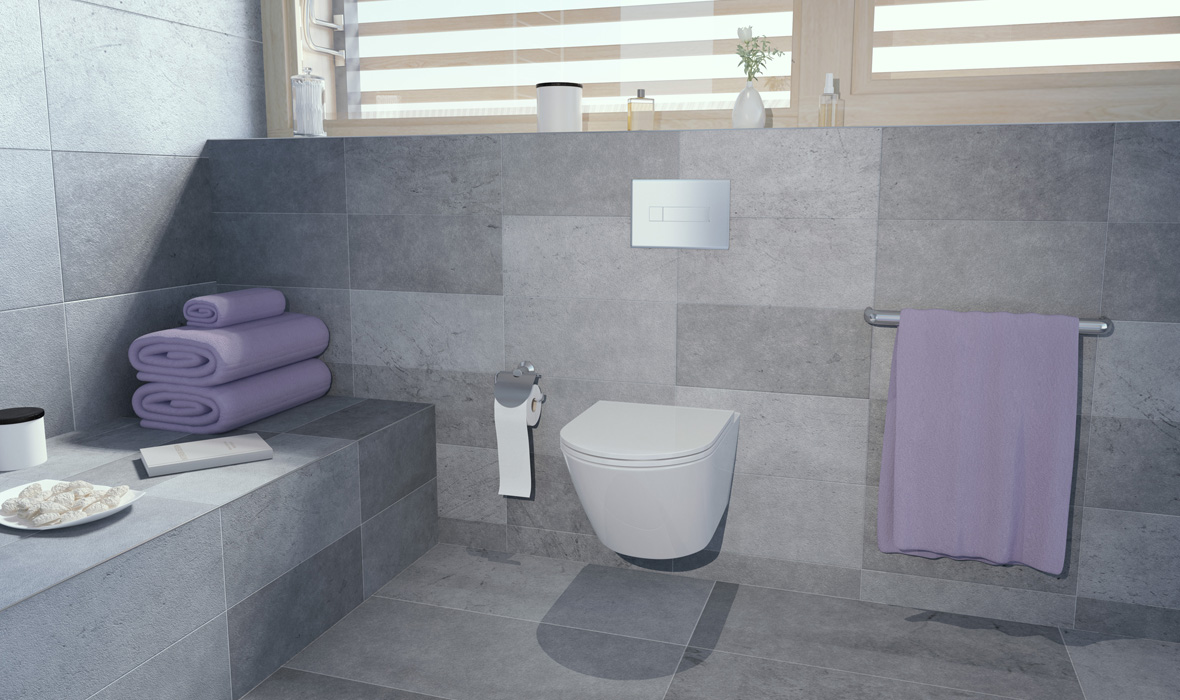

For the fast and easy cladding and installation of all standard WC elements with and for direct tiling without preparatory work.

Image 1 / 3
Image 2 / 3
Image 3 / 3

Downloads to the product

Brochures

JACKOBOARD Catalogue Global (pdf; 5 MB)

JACKOBOARD Construction board system (pdf; 6 MB)

Installation instructions

JACKOBOARD Sabo (pdf; 1 MB)

Approvals & Test Certificates

JACKOBOARD BBA Construction boards (pdf; 424 KB)

JACKOBOARD EPD (pdf; 1 MB)
